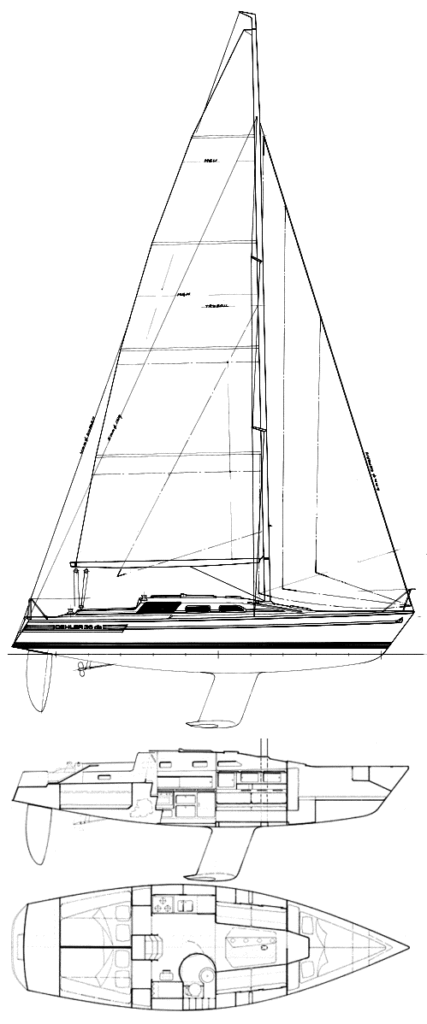

DEHLER 36 CWS
Built by Dehler (GER)
• Designed by E. G. van de Stadt
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1986
Last Built:
1994
Dimensions
Length Overall (LOA):
11.00 m
Length Waterline (LWL):
9.00 m
Beam:
3.50 m
Draft (Max):
1.85 m
Weight & Ballast
Displacement:
5,601 kg
Ballast:
2,400 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
25.36 m²
Mainsail Area:
33.74 m²
Total Sail Area (calculated):
59.10 m²
Sail Area (reported):
59.09 m²
I (Fore Triangle Height):
13.00 m
J (Fore Triangle Base):
3.90 m
P (Mainsail Hoist):
13.50 m
E (Boom Length):
5.00 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2GM20/30
Fuel Capacity:
151 L
Water Capacity:
250 L
Performance Ratios
Hull Speed:
7.28 knots
SA/Displacement (Calculated):
18.74
SA/Displacement (Reported):
19.11
Ballast/Disp Ratio:
42.85%
Displacement/Length:
214.07
Comfort Ratio:
23.48
Capsize Screening:
1.99
S-Number:
2.77
Notes
vds design #422.
