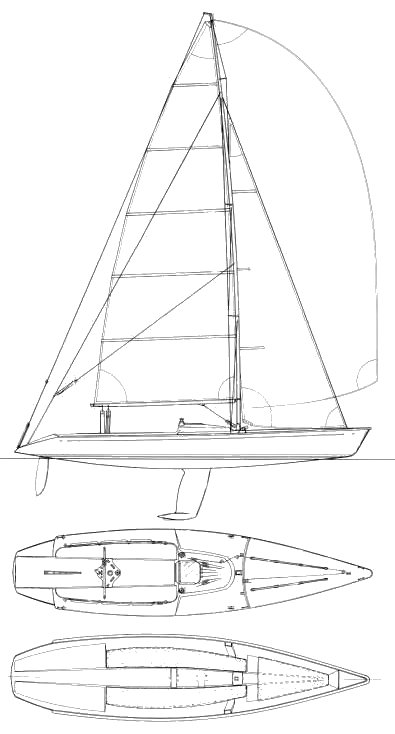

11 METER
• Designed by Ron Holland & Rolf Gyhlenius
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG w/core,Composite
First Built:
1990
Number Built:
350
Dimensions
Length Overall (LOA):
10.30 m
Length Waterline (LWL):
8.20 m
Beam:
2.50 m
Draft (Max):
1.80 m
Weight & Ballast
Displacement:
1,600 kg
Ballast:
725 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
15.22 m²
Mainsail Area:
22.83 m²
Total Sail Area (calculated):
38.05 m²
Sail Area (reported):
41.81 m²
I (Fore Triangle Height):
9.81 m
J (Fore Triangle Base):
3.10 m
P (Mainsail Hoist):
11.00 m
E (Boom Length):
4.15 m
Engine & Systems
Performance Ratios
Hull Speed:
6.95 knots
SA/Displacement (Calculated):
27.81
SA/Displacement (Reported):
31.16
Ballast/Disp Ratio:
45.31%
Displacement/Length:
80.89
Comfort Ratio:
11.41
Capsize Screening:
2.16
S-Number:
6.48
