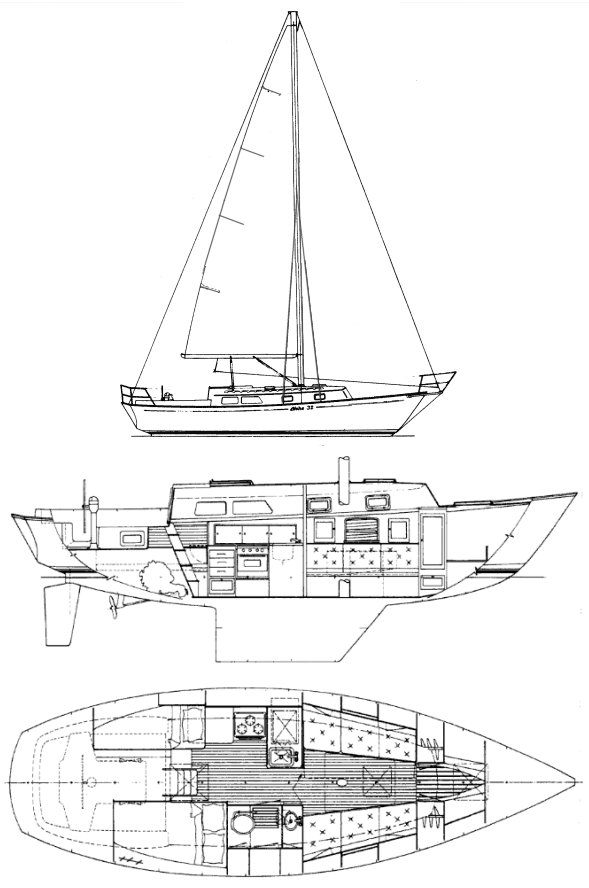

ALOHA 32
Built by Ouyang Boat Works (CAN)
• Designed by Mark Ellis
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1979
Last Built:
1988
Dimensions
Length Overall (LOA):
9.88 m
Length Waterline (LWL):
7.62 m
Beam:
3.30 m
Draft (Max):
1.45 m
Weight & Ballast
Displacement:
4,445 kg
Ballast:
1,823 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
28.29 m²
Mainsail Area:
20.35 m²
Total Sail Area (calculated):
48.64 m²
Sail Area (reported):
48.68 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
4.42 m
P (Mainsail Hoist):
11.13 m
E (Boom Length):
3.66 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Fuel Capacity:
114 L
Water Capacity:
227 L
Performance Ratios
Hull Speed:
6.70 knots
SA/Displacement (Calculated):
17.99
SA/Displacement (Reported):
18.37
Ballast/Disp Ratio:
41.00%
Displacement/Length:
280.00
Comfort Ratio:
23.30
Capsize Screening:
2.03
S-Number:
2.02
Notes
Shoal draft: 3.2'/.975m
