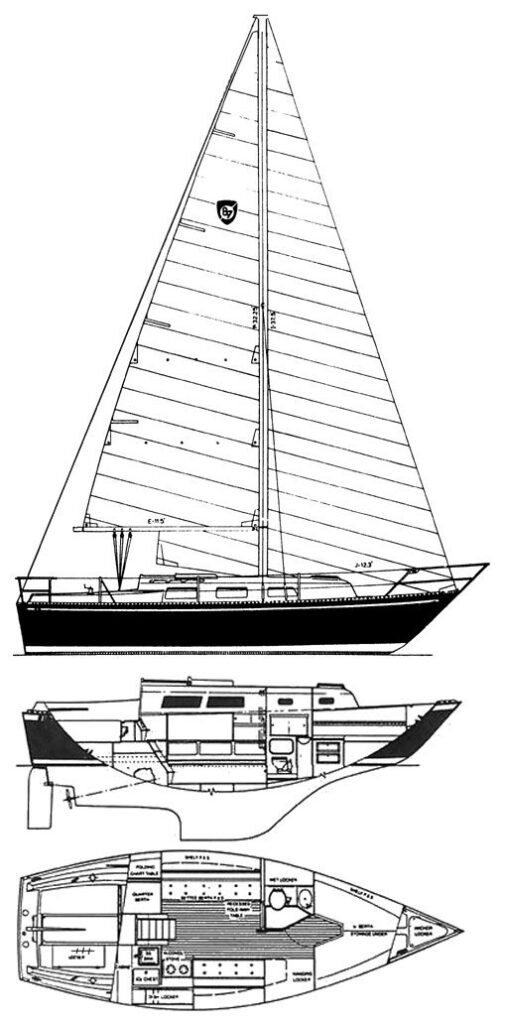

COLUMBIA 8.7
Built by Columbia Yachts/ Hughes Boat Works
• Designed by Alan Payne
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1976
Last Built:
1987
Number Built:
380
Dimensions
Length Overall (LOA):
8.71 m
Length Waterline (LWL):
7.06 m
Beam:
3.05 m
Draft (Max):
1.42 m
Weight & Ballast
Displacement:
3,856 kg
Ballast:
1,588 kg
Sail Plan
Foresail Area:
21.43 m²
Mainsail Area:
17.25 m²
Total Sail Area (calculated):
38.68 m²
Sail Area (reported):
38.65 m²
I (Fore Triangle Height):
11.43 m
J (Fore Triangle Base):
3.75 m
P (Mainsail Hoist):
9.85 m
E (Boom Length):
3.51 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Fuel Capacity:
45 L
Water Capacity:
49 L
Performance Ratios
Hull Speed:
6.45 knots
SA/Displacement (Calculated):
15.73
SA/Displacement (Reported):
16.03
Ballast/Disp Ratio:
41.18%
Displacement/Length:
305.07
Comfort Ratio:
24.67
Capsize Screening:
1.96
S-Number:
1.64
Notes
In 1979 Hughes Boat Works acquired the molds and built the COLUMBIA 8.7 for a while in Ontario, Canada. When Hughes went into receivership in 1982, the molds ended up with Aura Yachts where they were sold in varying states of completion. In 1986 Hughes took the line back again until their factory was destroyed by fire.
