CHRYSLER 26
Built by Chrysler Marine (USA)
• Designed by Halsey Hereshoff
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Swing Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1977
Dimensions
Length Overall (LOA):
7.92 m
Length Waterline (LWL):
6.71 m
Beam:
2.44 m
Draft (Max):
1.88 m
Draft (Min):
0.69 m
Max Height:
9.24 m
Weight & Ballast
Displacement:
2,268 kg
Ballast:
862 kg

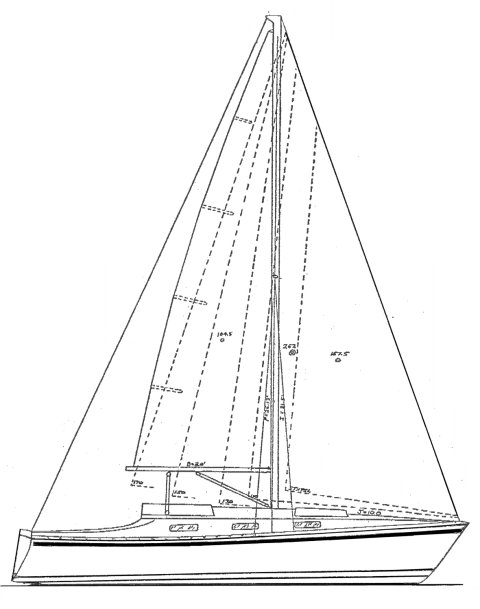

Sail Plan
Foresail Area:
11.18 m²
Mainsail Area:
8.20 m²
Total Sail Area (calculated):
19.38 m²
Sail Area (reported):
23.88 m²
I (Fore Triangle Height):
8.38 m
J (Fore Triangle Base):
2.67 m
P (Mainsail Hoist):
7.10 m
E (Boom Length):
2.31 m
Engine & Systems
Performance Ratios
Hull Speed:
6.29 knots
SA/Displacement (Calculated):
11.23
SA/Displacement (Reported):
14.10
Ballast/Disp Ratio:
38.00%
Displacement/Length:
209.63
Comfort Ratio:
20.87
Capsize Screening:
1.87
S-Number:
1.87
Notes
When TMI bought the molds, they ca;;ed it the C-26. Later the T-26 Courser
