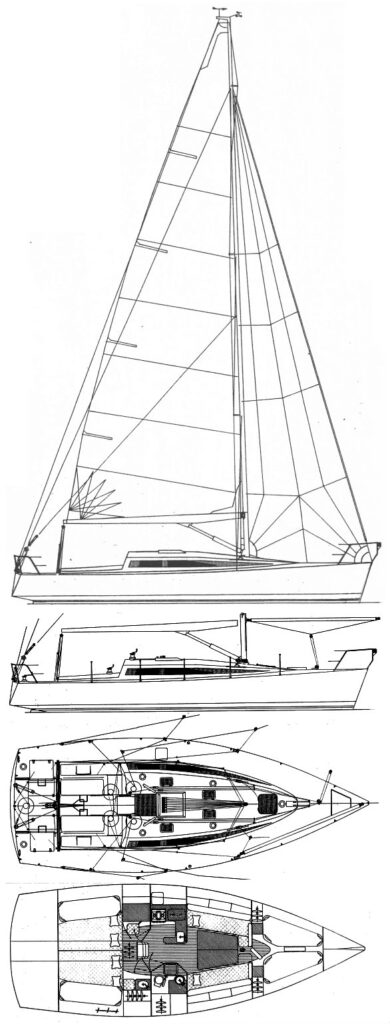

CHANNEL 36/E37
Built by Waveform Yachts/Voyager Yachts/Epoch Marine
• Designed by Julian Everitt
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1989
Last Built:
2003
Number Built:
14
Dimensions
Length Overall (LOA):
11.00 m
Length Waterline (LWL):
9.44 m
Beam:
4.20 m
Draft (Max):
2.22 m
Weight & Ballast
Displacement:
5,316 kg
Ballast:
1,923 kg
Sail Plan
Foresail Area:
28.13 m²
Mainsail Area:
41.69 m²
Total Sail Area (calculated):
69.82 m²
Sail Area (reported):
74.79 m²
I (Fore Triangle Height):
14.80 m
J (Fore Triangle Base):
3.80 m
P (Mainsail Hoist):
15.30 m
E (Boom Length):
5.45 m
Engine & Systems
Performance Ratios
Hull Speed:
7.46 knots
SA/Displacement (Calculated):
22.92
SA/Displacement (Reported):
25.05
Ballast/Disp Ratio:
36.17%
Displacement/Length:
176.14
Comfort Ratio:
16.94
Capsize Screening:
2.43
S-Number:
3.76
Notes
Sail area:
