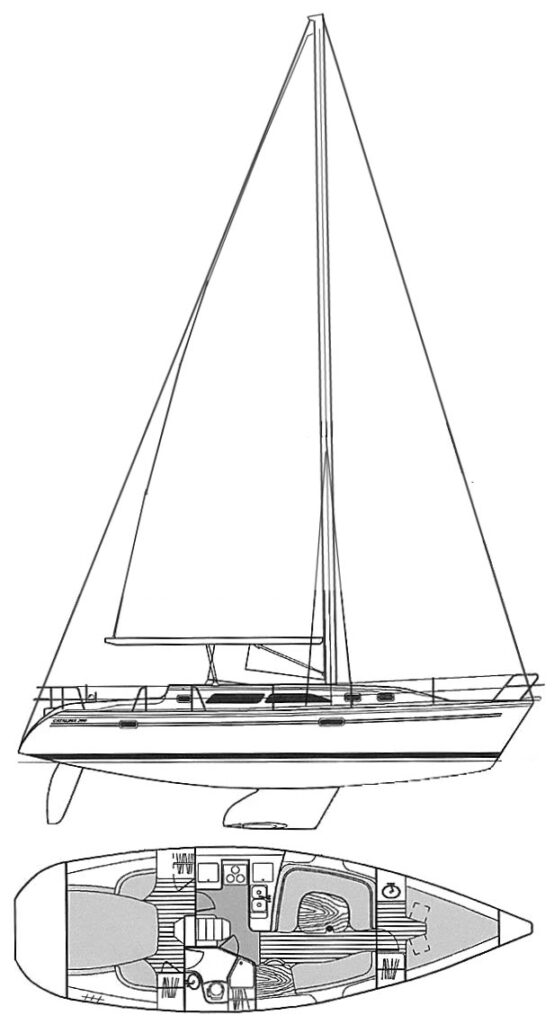

CATALINA 380
Built by Catalina Yachts (USA)
• Designed by G. Douglas / Catalina
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1997
Dimensions
Length Overall (LOA):
11.71 m
Length Waterline (LWL):
9.88 m
Beam:
3.76 m
Draft (Max):
2.19 m
Weight & Ballast
Displacement:
8,618 kg
Ballast:
3,084 kg
Sail Plan
Foresail Area:
34.70 m²
Mainsail Area:
32.63 m²
Total Sail Area (calculated):
67.33 m²
Sail Area (reported):
67.17 m²
I (Fore Triangle Height):
15.52 m
J (Fore Triangle Base):
4.47 m
P (Mainsail Hoist):
13.66 m
E (Boom Length):
4.78 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Power:
42 HP
Fuel Capacity:
98 L
Water Capacity:
386 L
Performance Ratios
Hull Speed:
7.63 knots
SA/Displacement (Calculated):
16.02
SA/Displacement (Reported):
16.31
Ballast/Disp Ratio:
35.79%
Displacement/Length:
248.92
Comfort Ratio:
30.24
Capsize Screening:
1.85
S-Number:
2.12
Notes
Loosely based on the MORGAN-CATALINA 381.
