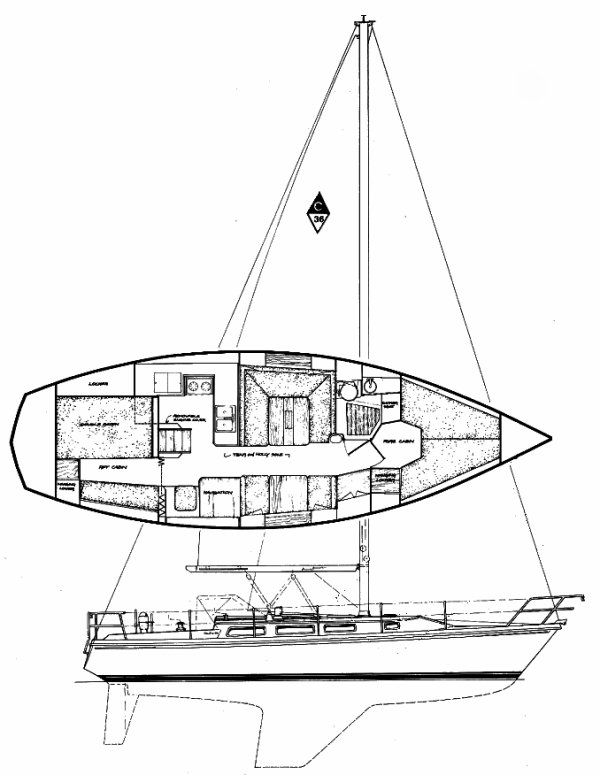

CATALINA 36
Built by Catalina Yachts (USA)
• Designed by Frank Butler
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1982
Number Built:
1766
Dimensions
Length Overall (LOA):
11.07 m
Length Waterline (LWL):
9.22 m
Beam:
3.63 m
Draft (Max):
1.78 m
Max Height:
15.29 m
Weight & Ballast
Displacement:
6,123 kg
Ballast:
2,722 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
29.79 m²
Mainsail Area:
21.74 m²
Total Sail Area (calculated):
51.53 m²
Sail Area (reported):
50.63 m²
I (Fore Triangle Height):
13.64 m
J (Fore Triangle Base):
4.37 m
P (Mainsail Hoist):
11.89 m
E (Boom Length):
3.66 m
Engine & Systems
Fuel Capacity:
95 L
Water Capacity:
273 L
Performance Ratios
Hull Speed:
7.37 knots
SA/Displacement (Calculated):
15.40
SA/Displacement (Reported):
15.44
Ballast/Disp Ratio:
44.44%
Displacement/Length:
217.73
Comfort Ratio:
23.98
Capsize Screening:
2.01
S-Number:
2.36
Notes
Also available with a shallower draft wing keel and tall rig.
