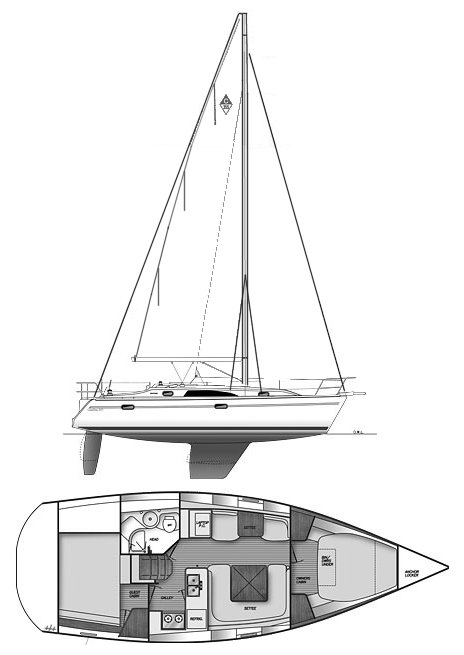

CATALINA 355
Built by Catalina Yachts (USA)
• Designed by Gerry Douglas
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2008
Dimensions
Length Overall (LOA):
10.80 m
Length Waterline (LWL):
9.19 m
Beam:
3.66 m
Draft (Max):
2.09 m
Max Height:
16.69 m
Weight & Ballast
Displacement:
6,251 kg
Ballast:
2,355 kg
Sail Plan
Foresail Area:
25.77 m²
Mainsail Area:
27.44 m²
Total Sail Area (calculated):
53.21 m²
Sail Area (reported):
53.23 m²
I (Fore Triangle Height):
13.72 m
J (Fore Triangle Base):
3.76 m
P (Mainsail Hoist):
13.34 m
E (Boom Length):
4.11 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3YM30
Engine Power:
29 HP
Fuel Capacity:
114 L
Water Capacity:
405 L
Performance Ratios
Hull Speed:
7.36 knots
SA/Displacement (Calculated):
15.68
SA/Displacement (Reported):
16.01
Ballast/Disp Ratio:
37.68%
Displacement/Length:
224.25
Comfort Ratio:
24.52
Capsize Screening:
2.01
S-Number:
2.33
Notes
Draft for wing keel version: 1.37m/4.5'
