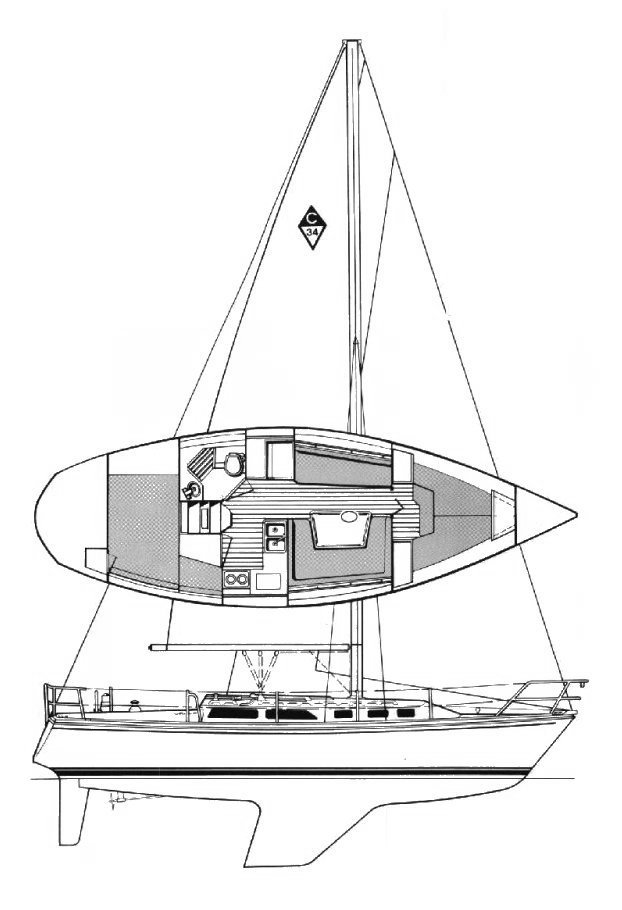

CATALINA 34
Built by Catalina Yachts (USA)
• Designed by Frank Butler
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1985
Number Built:
1438
Dimensions
Length Overall (LOA):
10.52 m
Length Waterline (LWL):
9.09 m
Beam:
3.58 m
Draft (Max):
1.70 m
Weight & Ballast
Displacement:
5,420 kg
Ballast:
2,268 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
27.59 m²
Mainsail Area:
21.01 m²
Total Sail Area (calculated):
48.60 m²
Sail Area (reported):
48.59 m²
I (Fore Triangle Height):
13.41 m
J (Fore Triangle Base):
4.11 m
P (Mainsail Hoist):
11.73 m
E (Boom Length):
3.58 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Power:
21 HP
Performance Ratios
Hull Speed:
7.32 knots
SA/Displacement (Calculated):
15.75
SA/Displacement (Reported):
16.07
Ballast/Disp Ratio:
41.84%
Displacement/Length:
200.98
Comfort Ratio:
22.22
Capsize Screening:
2.06
S-Number:
2.58
Notes
Total Catalina 34's built: 1,438
