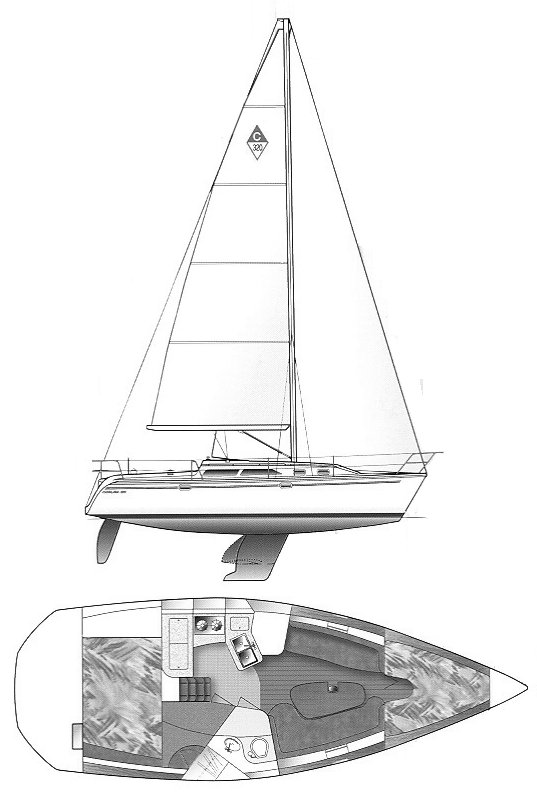

CATALINA 320
Built by Catalina Yachts (USA)
• Designed by Gerry Douglas
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1993
Dimensions
Length Overall (LOA):
9.91 m
Length Waterline (LWL):
8.53 m
Beam:
3.58 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
5,126 kg
Ballast:
1,814 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
24.96 m²
Mainsail Area:
23.39 m²
Total Sail Area (calculated):
48.35 m²
Sail Area (reported):
48.31 m²
I (Fore Triangle Height):
13.28 m
J (Fore Triangle Base):
3.76 m
P (Mainsail Hoist):
11.58 m
E (Boom Length):
4.04 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3GM30F
Engine Power:
27 HP
Performance Ratios
Hull Speed:
7.09 knots
SA/Displacement (Calculated):
16.26
SA/Displacement (Reported):
16.58
Ballast/Disp Ratio:
35.40%
Displacement/Length:
229.80
Comfort Ratio:
22.36
Capsize Screening:
2.10
S-Number:
2.33
Notes
Early models were marketed without a bow pulpit. LOA reported above equals hull length (LOD): 32.5 ft / 9.91 m
