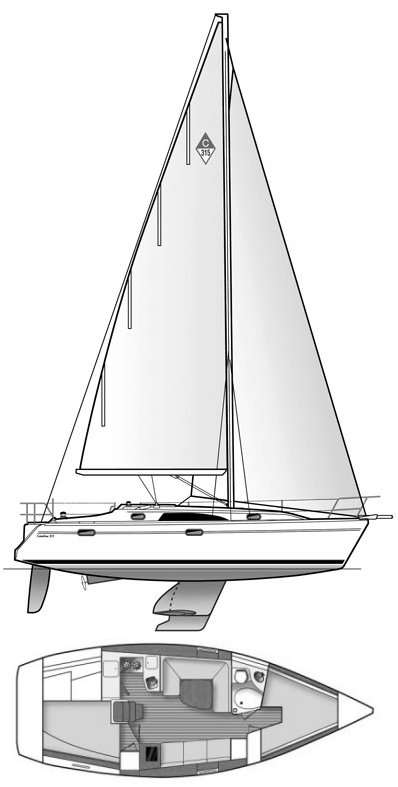

CATALINA 315
Built by Catalina Yachts (USA)
• Designed by Gerry Douglas
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2012
Dimensions
Length Overall (LOA):
9.73 m
Length Waterline (LWL):
8.08 m
Beam:
3.53 m
Draft (Max):
1.91 m
Max Height:
14.71 m
Weight & Ballast
Displacement:
4,627 kg
Ballast:
1,814 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
19.62 m²
Mainsail Area:
24.75 m²
Total Sail Area (calculated):
44.37 m²
Sail Area (reported):
44.41 m²
I (Fore Triangle Height):
13.03 m
J (Fore Triangle Base):
3.01 m
P (Mainsail Hoist):
11.81 m
E (Boom Length):
4.19 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3YM30
Engine Power:
21 HP
Fuel Capacity:
102 L
Water Capacity:
155 L
Performance Ratios
Hull Speed:
6.90 knots
SA/Displacement (Calculated):
15.98
SA/Displacement (Reported):
16.32
Ballast/Disp Ratio:
39.20%
Displacement/Length:
244.44
Comfort Ratio:
21.47
Capsize Screening:
2.14
S-Number:
2.16
Notes
Shallow draft (wing keel): 1.32m/4.33'.
