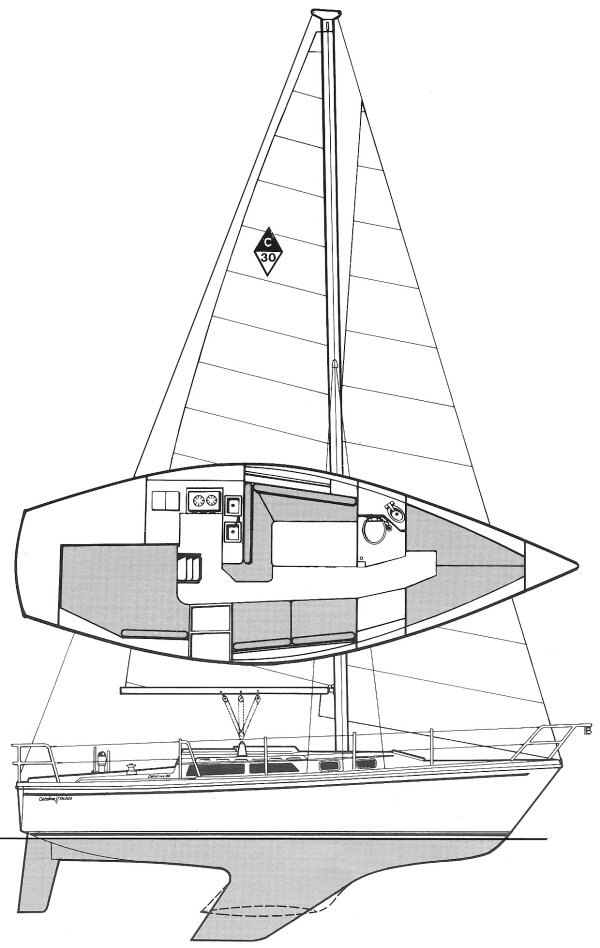

CATALINA 30 MKII
Built by Catalina Yachts (USA)
• Designed by Gerry Douglass
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1986
Last Built:
1991
Dimensions
Length Overall (LOA):
9.12 m
Length Waterline (LWL):
7.62 m
Beam:
3.30 m
Draft (Max):
1.60 m
Weight & Ballast
Displacement:
4,627 kg
Ballast:
1,905 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
21.90 m²
Mainsail Area:
18.70 m²
Total Sail Area (calculated):
40.60 m²
Sail Area (reported):
40.60 m²
I (Fore Triangle Height):
12.50 m
J (Fore Triangle Base):
3.51 m
P (Mainsail Hoist):
10.67 m
E (Boom Length):
3.51 m
Engine & Systems
Performance Ratios
Hull Speed:
6.70 knots
SA/Displacement (Calculated):
14.62
SA/Displacement (Reported):
14.92
Ballast/Disp Ratio:
41.18%
Displacement/Length:
291.43
Comfort Ratio:
24.93
Capsize Screening:
2.00
S-Number:
1.64
Notes
(1986-1991)
