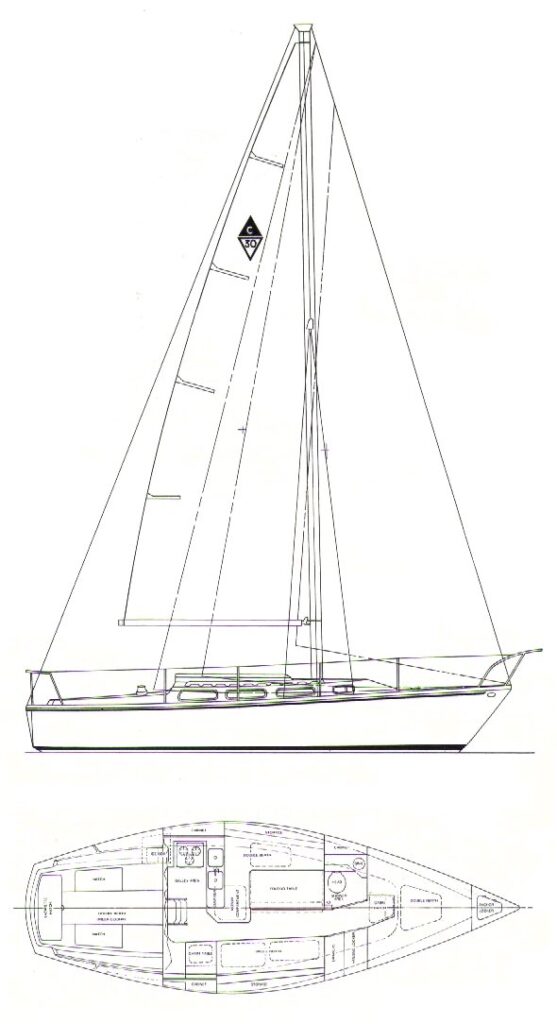

CATALINA 30
Built by Catalina Yachts (USA)
• Designed by Frank Butler
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1976
Last Built:
2008
Number Built:
6430
Dimensions
Length Overall (LOA):
9.12 m
Length Waterline (LWL):
7.62 m
Beam:
3.30 m
Draft (Max):
1.60 m
Headroom:
1.91 m
Max Height:
14.00 m
Weight & Ballast
Displacement:
4,627 kg
Ballast:
1,905 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
21.90 m²
Mainsail Area:
18.70 m²
Total Sail Area (calculated):
40.60 m²
Sail Area (reported):
41.43 m²
I (Fore Triangle Height):
12.50 m
J (Fore Triangle Base):
3.51 m
P (Mainsail Hoist):
10.67 m
E (Boom Length):
3.51 m
Engine & Systems
Engine Make:
Var.
Engine Type:
Var.
Fuel Capacity:
79 L
Water Capacity:
163 L
Performance Ratios
Hull Speed:
6.70 knots
SA/Displacement (Calculated):
14.62
SA/Displacement (Reported):
15.22
Ballast/Disp Ratio:
41.18%
Displacement/Length:
291.43
Comfort Ratio:
24.93
Capsize Screening:
2.00
S-Number:
1.64
Notes
With more than 6000 sold, the Catalina 30 is one of the most successful production sailing yachts in history.
