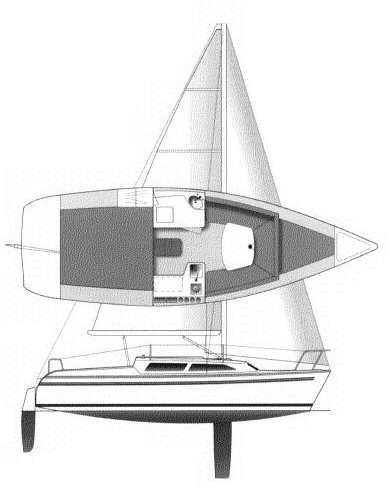

CATALINA 250 (WATER BALLLAST)
Built by Catalina Yachts (USA)
General Information
Hull Type:
Centerboard (Trunk)
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1995
Dimensions
Length Overall (LOA):
7.62 m
Length Waterline (LWL):
6.48 m
Beam:
2.59 m
Draft (Max):
1.75 m
Draft (Min):
0.51 m
Max Height:
10.13 m
Weight & Ballast
Displacement:
1,474 kg
Ballast:
544 kg
Ballast Type:
Water
Sail Plan
Foresail Area:
12.12 m²
Mainsail Area:
12.24 m²
Total Sail Area (calculated):
24.36 m²
Sail Area (reported):
24.34 m²
I (Fore Triangle Height):
8.84 m
J (Fore Triangle Base):
2.74 m
P (Mainsail Hoist):
7.42 m
E (Boom Length):
3.30 m
Engine & Systems
Fuel Capacity:
23 L
Water Capacity:
19 L
Performance Ratios
Hull Speed:
6.18 knots
SA/Displacement (Calculated):
18.81
SA/Displacement (Reported):
19.16
Ballast/Disp Ratio:
36.92%
Displacement/Length:
151.20
Comfort Ratio:
12.97
Capsize Screening:
2.30
S-Number:
3.66
Notes
Variant of CATALINA 250 with a centerboard and water ballast. Tank incorporated into double bottom and designed as static ballast. (Always filled while sailing; Emptied for trailering)
