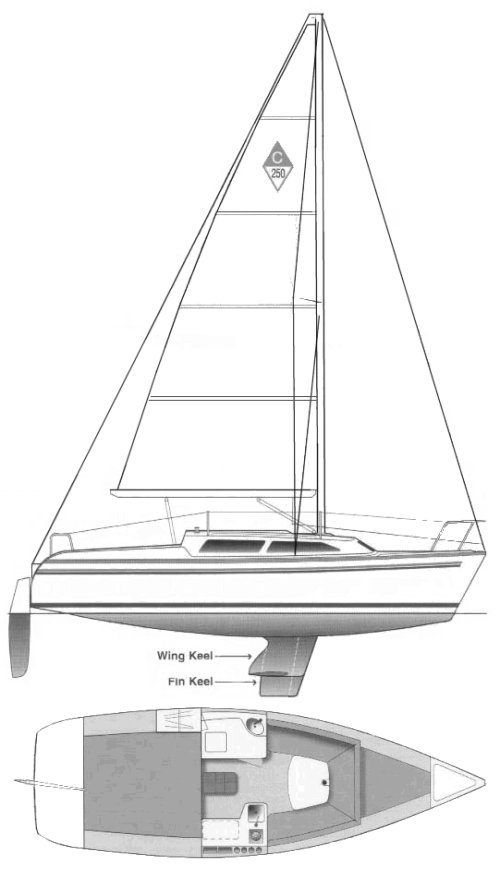

CATALINA 250
Built by Catalina Yachts (USA)
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1995
Dimensions
Length Overall (LOA):
7.62 m
Length Waterline (LWL):
6.48 m
Beam:
2.59 m
Draft (Max):
1.52 m
Max Height:
10.13 m
Weight & Ballast
Displacement:
1,905 kg
Ballast:
476 kg
Sail Plan
Foresail Area:
12.12 m²
Mainsail Area:
12.52 m²
Total Sail Area (calculated):
24.64 m²
Sail Area (reported):
24.62 m²
I (Fore Triangle Height):
8.84 m
J (Fore Triangle Base):
2.74 m
P (Mainsail Hoist):
7.47 m
E (Boom Length):
3.35 m
Engine & Systems
Performance Ratios
Hull Speed:
6.18 knots
SA/Displacement (Calculated):
16.03
SA/Displacement (Reported):
16.33
Ballast/Disp Ratio:
25.00%
Displacement/Length:
195.40
Comfort Ratio:
16.77
Capsize Screening:
2.11
S-Number:
2.68
Notes
Wing Keel draft: 3.42'/1.04m
