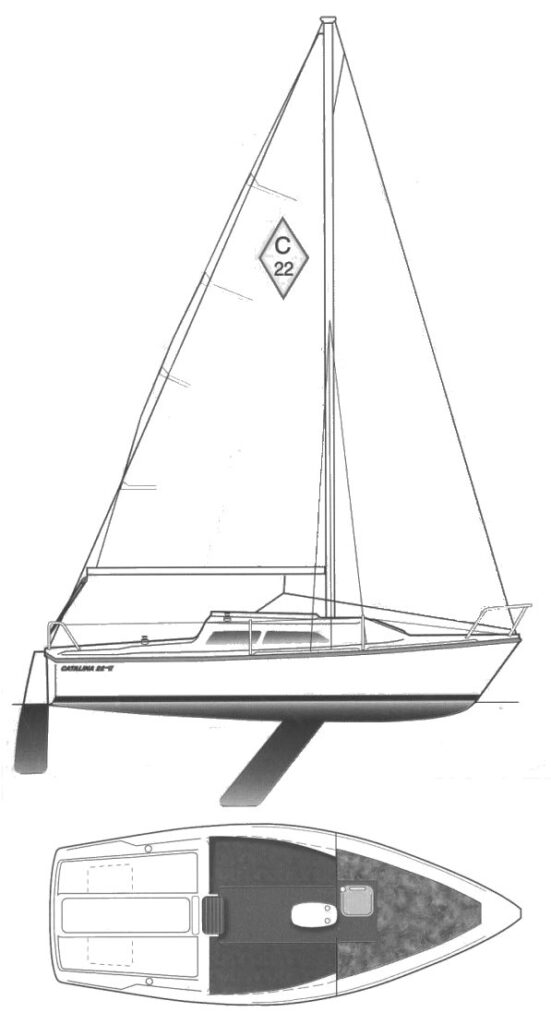

CATALINA 22 MKII
Built by Catalina Yachts (USA)
• Designed by Frank V. Butler
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1995
Dimensions
Length Overall (LOA):
7.26 m
Length Waterline (LWL):
5.89 m
Beam:
2.54 m
Draft (Max):
1.07 m
Max Height:
8.86 m
Weight & Ballast
Displacement:
1,039 kg
Ballast:
347 kg
Sail Plan
Foresail Area:
9.60 m²
Mainsail Area:
9.81 m²
Total Sail Area (calculated):
19.41 m²
Sail Area (reported):
19.42 m²
I (Fore Triangle Height):
7.87 m
J (Fore Triangle Base):
2.44 m
P (Mainsail Hoist):
6.65 m
E (Boom Length):
2.95 m
Engine & Systems
Performance Ratios
Hull Speed:
5.89 knots
SA/Displacement (Calculated):
18.91
SA/Displacement (Reported):
19.29
Ballast/Disp Ratio:
33.41%
Displacement/Length:
141.54
Comfort Ratio:
10.16
Capsize Screening:
2.53
S-Number:
3.83
Notes
Upgraded version of the original CATALINA 22, one of the most popular boats of this size ever built.
