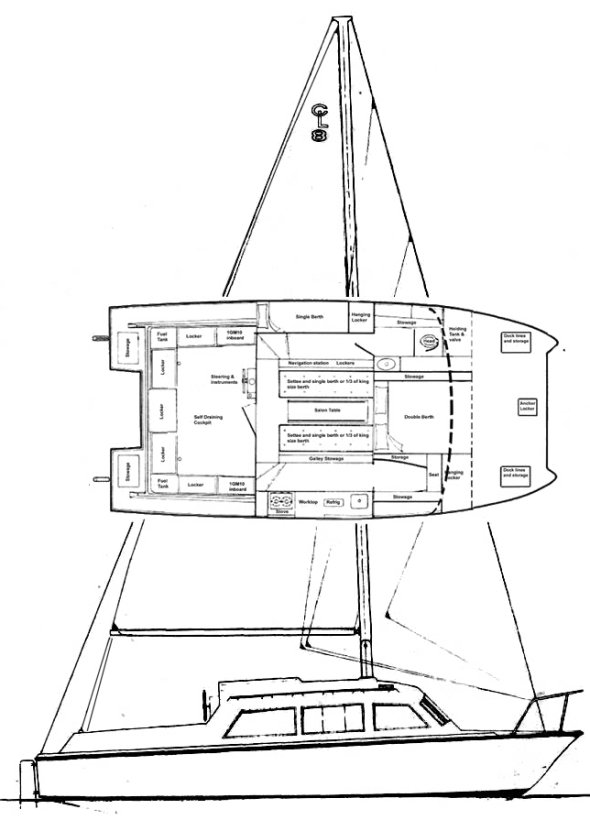

CATALAC 8M
Built by Tom Lack Catamarans (UK)
• Designed by J. Winterbotham/T.M. Lack
General Information
Hull Type:
Catamaran (no boards/asym.)
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Number Built:
212
Dimensions
Length Overall (LOA):
8.23 m
Length Waterline (LWL):
7.77 m
Beam:
4.17 m
Draft (Max):
0.61 m
Max Height:
12.50 m
Weight & Ballast
Displacement:
2,850 kg
Sail Plan
Sail Area (reported):
25.55 m²
Engine & Systems
Fuel Capacity:
76 L
Water Capacity:
265 L
Performance Ratios
SA/Displacement (Reported):
12.96
Displacement/Length:
169.16
Notes
A shortened version of the CATALAC 9M/CATALAC 30.
