CARTER 39
Built by Olympic Yachts (GREECE)
• Designed by Dick Carter
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1974
Dimensions
Length Overall (LOA):
11.89 m
Length Waterline (LWL):
9.14 m
Beam:
3.89 m
Draft (Max):
2.06 m
Weight & Ballast
Displacement:
8,505 kg
Ballast:
3,334 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
40.46 m²
Mainsail Area:
27.78 m²
Total Sail Area (calculated):
68.24 m²
Sail Area (reported):
68.19 m²
I (Fore Triangle Height):
15.85 m
J (Fore Triangle Base):
5.11 m
P (Mainsail Hoist):
14.02 m
E (Boom Length):
3.96 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-107
Engine Power:
50 HP
Fuel Capacity:
114 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
7.34 knots
SA/Displacement (Calculated):
16.38
SA/Displacement (Reported):
16.70
Ballast/Disp Ratio:
39.20%
Displacement/Length:
310.02
Comfort Ratio:
29.87
Capsize Screening:
1.92
S-Number:
1.65
Notes

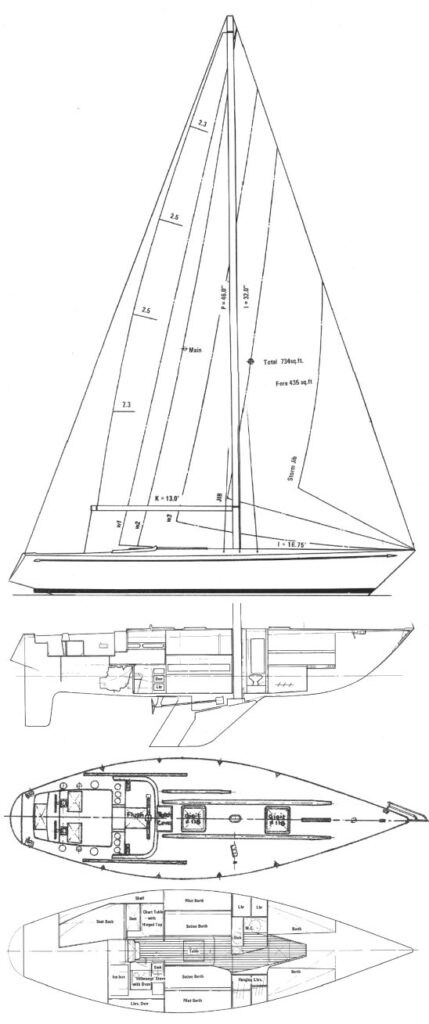

Shown here is the flush deck 'Competition' version. Another version 'Offshore' with a trunk cabin was also available.
