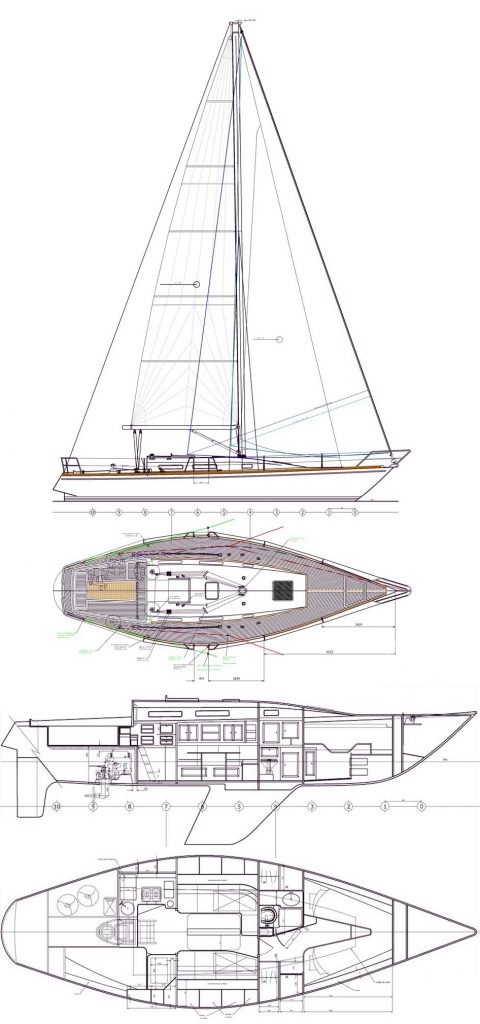

CARTER 37 (1 TON)
Built by Olympic Yachts (GREECE)
• Designed by Dick Carter
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1973
Dimensions
Length Overall (LOA):
11.28 m
Length Waterline (LWL):
8.66 m
Beam:
3.63 m
Draft (Max):
1.93 m
Weight & Ballast
Displacement:
6,940 kg
Ballast:
2,850 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
35.67 m²
Mainsail Area:
22.90 m²
Total Sail Area (calculated):
58.57 m²
Sail Area (reported):
58.53 m²
I (Fore Triangle Height):
14.63 m
J (Fore Triangle Base):
4.88 m
P (Mainsail Hoist):
12.95 m
E (Boom Length):
3.54 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-107
Engine Power:
50 HP
Performance Ratios
Hull Speed:
7.14 knots
SA/Displacement (Calculated):
16.10
SA/Displacement (Reported):
16.42
Ballast/Disp Ratio:
41.07%
Displacement/Length:
297.56
Comfort Ratio:
28.12
Capsize Screening:
1.92
S-Number:
1.72
Notes
Production version of 1973 IOR One Ton Cup winner, 'YDRA'. (1 ton was 27.5', IOR MkIII)
