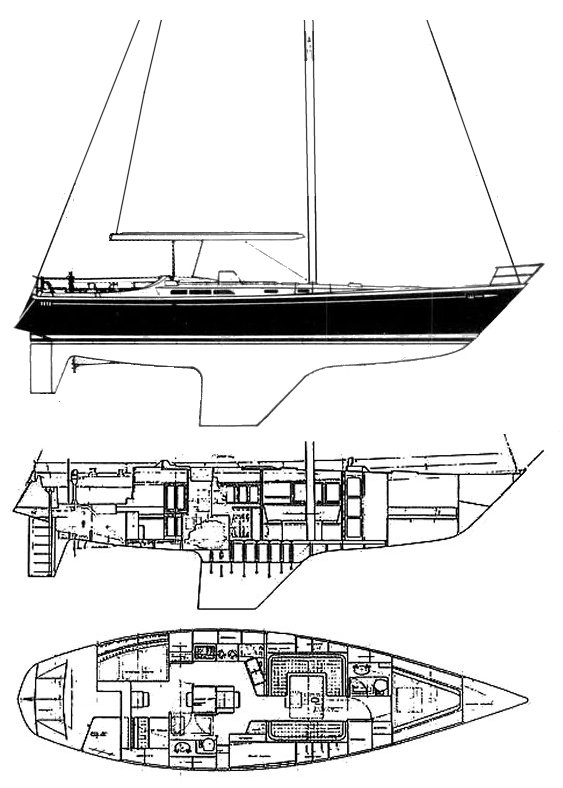

CARDINAL 46
Built by Sen Koh Shipbuilding Co. (TAIWAN)
• Designed by Alan Warwick
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG w/balsa cored deck
First Built:
1985
Dimensions
Length Overall (LOA):
14.15 m
Length Waterline (LWL):
11.61 m
Beam:
4.01 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
12,474 kg
Ballast:
5,545 kg
Sail Plan
Foresail Area:
47.40 m²
Mainsail Area:
39.47 m²
Total Sail Area (calculated):
86.87 m²
Sail Area (reported):
86.86 m²
I (Fore Triangle Height):
16.97 m
J (Fore Triangle Base):
5.59 m
P (Mainsail Hoist):
15.16 m
E (Boom Length):
5.21 m
Engine & Systems
Engine Make:
Pathfinder
Engine Type:
Diesel
Engine Power:
55 HP
Fuel Capacity:
416 L
Water Capacity:
473 L
Performance Ratios
Hull Speed:
8.27 knots
SA/Displacement (Calculated):
16.15
SA/Displacement (Reported):
16.49
Ballast/Disp Ratio:
44.45%
Displacement/Length:
222.33
Comfort Ratio:
33.84
Capsize Screening:
1.75
S-Number:
2.40
Notes
Deep keel: 7.42'/2.26m
