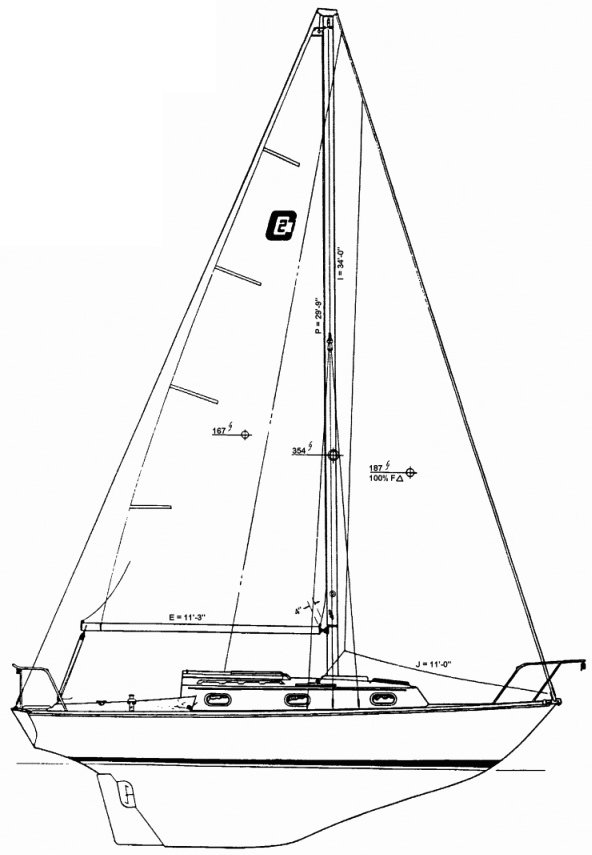

CAPE DORY 27
Built by Cape Dory (USA)
• Designed by Carl Alberg
General Information
Hull Type:
Full keel with attached rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1977
Last Built:
1985
Number Built:
277
Dimensions
Length Overall (LOA):
8.25 m
Length Waterline (LWL):
6.10 m
Beam:
2.59 m
Draft (Max):
1.22 m
Max Height:
11.73 m
Weight & Ballast
Displacement:
3,402 kg
Ballast:
1,361 kg
Sail Plan
Foresail Area:
17.37 m²
Mainsail Area:
15.55 m²
Total Sail Area (calculated):
32.92 m²
Sail Area (reported):
33.91 m²
I (Fore Triangle Height):
10.36 m
J (Fore Triangle Base):
3.35 m
P (Mainsail Hoist):
9.07 m
E (Boom Length):
3.43 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Fuel Capacity:
49 L
Water Capacity:
91 L
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calculated):
14.55
SA/Displacement (Reported):
15.29
Ballast/Disp Ratio:
40.00%
Displacement/Length:
418.53
Comfort Ratio:
30.28
Capsize Screening:
1.74
S-Number:
0.94
