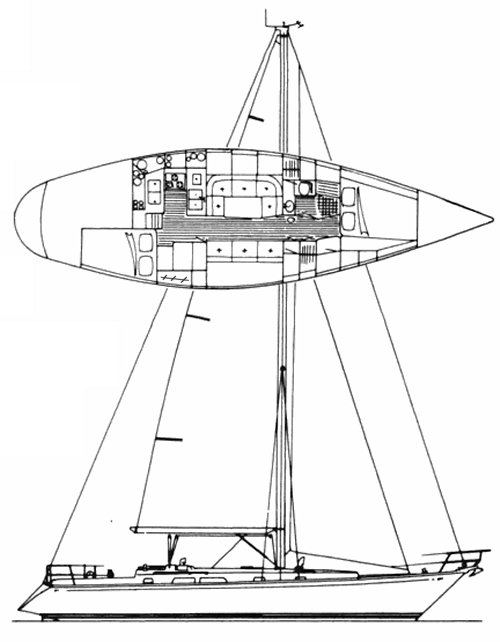

CAMBRIA 40
Built by Cabo Rico Custom Yachts, Inc.
• Designed by David Walters
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG airex hull, divinicell deck
First Built:
1985
Dimensions
Length Overall (LOA):
12.62 m
Length Waterline (LWL):
9.91 m
Beam:
3.73 m
Draft (Max):
2.13 m
Weight & Ballast
Displacement:
11,793 kg
Ballast:
4,309 kg
Sail Plan
Foresail Area:
41.99 m²
Mainsail Area:
33.59 m²
Total Sail Area (calculated):
75.58 m²
Sail Area (reported):
75.62 m²
I (Fore Triangle Height):
17.22 m
J (Fore Triangle Base):
4.88 m
P (Mainsail Hoist):
15.47 m
E (Boom Length):
4.34 m
Engine & Systems
Performance Ratios
Hull Speed:
7.64 knots
SA/Displacement (Calculated):
14.59
SA/Displacement (Reported):
14.90
Ballast/Disp Ratio:
36.54%
Displacement/Length:
338.12
Comfort Ratio:
40.61
Capsize Screening:
1.66
S-Number:
1.34
