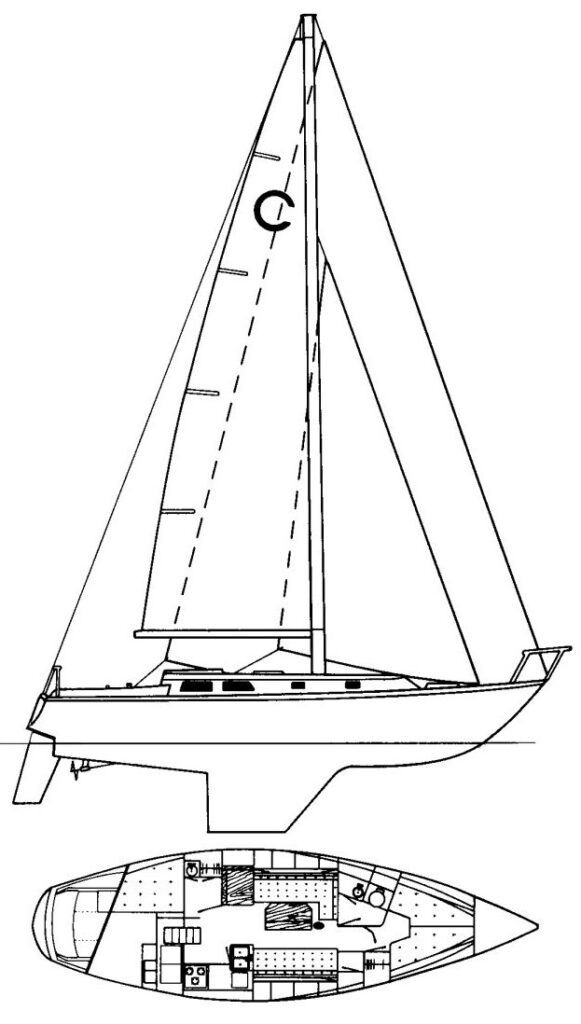

CAL 39 MK II (1-147)
Built by Jensen Marine/Bangor Punta
• Designed by C. William Lapworth
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG w/balsa deck
First Built:
1978
Last Built:
1982
Dimensions
Length Overall (LOA):
11.89 m
Length Waterline (LWL):
9.78 m
Beam:
3.66 m
Draft (Max):
2.03 m
Weight & Ballast
Displacement:
7,711 kg
Ballast:
3,175 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
38.72 m²
Mainsail Area:
28.10 m²
Total Sail Area (calculated):
66.82 m²
Sail Area (reported):
66.80 m²
I (Fore Triangle Height):
15.24 m
J (Fore Triangle Base):
5.08 m
P (Mainsail Hoist):
13.41 m
E (Boom Length):
4.19 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4108
Engine Power:
50 HP
Fuel Capacity:
189 L
Water Capacity:
341 L
Performance Ratios
Hull Speed:
7.59 knots
SA/Displacement (Calculated):
17.12
SA/Displacement (Reported):
17.46
Ballast/Disp Ratio:
41.18%
Displacement/Length:
229.88
Comfort Ratio:
28.10
Capsize Screening:
1.87
S-Number:
2.42
Notes
Also delivered with Pathfinder Diesel.
