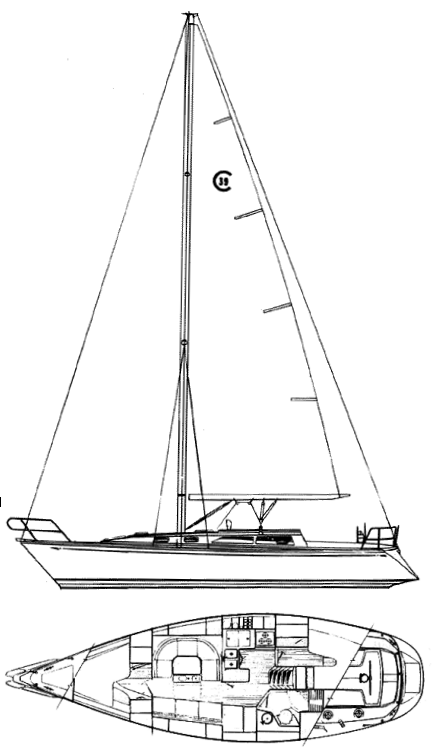

CAL 39 (HUNT/O'DAY)
Built by Bangor Punta (USA)
• Designed by C. Raymond Hunt and Associates
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1988
Last Built:
1997
Dimensions
Length Overall (LOA):
11.89 m
Length Waterline (LWL):
9.65 m
Beam:
3.83 m
Draft (Max):
2.13 m
Weight & Ballast
Displacement:
7,938 kg
Ballast:
3,175 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
37.19 m²
Mainsail Area:
32.51 m²
Total Sail Area (calculated):
69.70 m²
Sail Area (reported):
69.68 m²
I (Fore Triangle Height):
16.00 m
J (Fore Triangle Base):
4.65 m
P (Mainsail Hoist):
14.22 m
E (Boom Length):
4.57 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Performance Ratios
Hull Speed:
7.54 knots
SA/Displacement (Calculated):
17.52
SA/Displacement (Reported):
17.87
Ballast/Disp Ratio:
40.00%
Displacement/Length:
245.95
Comfort Ratio:
27.40
Capsize Screening:
1.94
S-Number:
2.30
Notes
This later Hunt designed CAL 39 is completely different from earlier Lapworth designed 39's.
