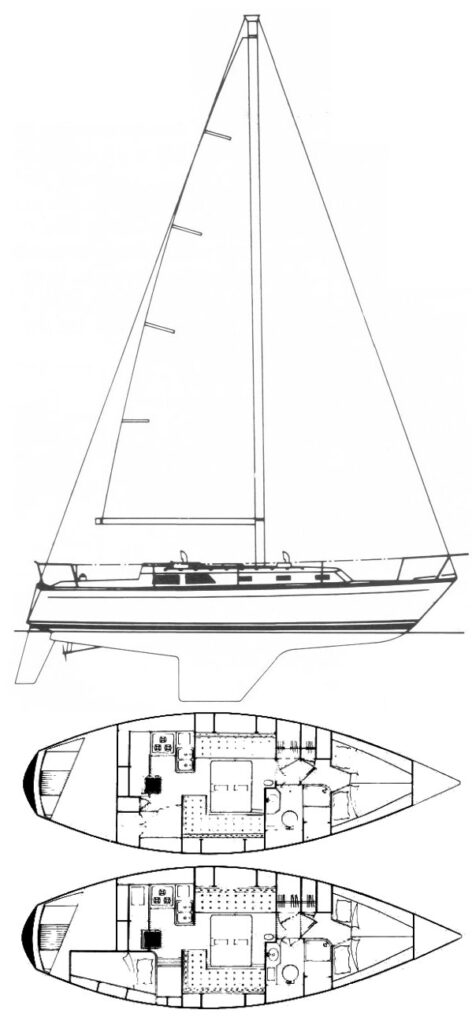

CAL 35 (1979)
Built by Jensen Marine (USA)
• Designed by C. William Lapworth
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1979
Dimensions
Length Overall (LOA):
10.69 m
Length Waterline (LWL):
8.76 m
Beam:
3.35 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
5,897 kg
Ballast:
2,359 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
32.40 m²
Mainsail Area:
23.52 m²
Total Sail Area (calculated):
55.92 m²
Sail Area (reported):
56.39 m²
I (Fore Triangle Height):
14.17 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
12.34 m
E (Boom Length):
3.81 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Fuel Capacity:
125 L
Water Capacity:
341 L
Performance Ratios
Hull Speed:
7.18 knots
SA/Displacement (Calculated):
17.13
SA/Displacement (Reported):
17.63
Ballast/Disp Ratio:
40.00%
Displacement/Length:
244.22
Comfort Ratio:
26.89
Capsize Screening:
1.87
S-Number:
2.28
Notes
Deep draft: 6.0'/1.83m
