C&C 37/40+
Built by C&C International
• Designed by Robert Ball
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1988
Last Built:
1997
Dimensions
Length Overall (LOA):
12.04 m
Length Waterline (LWL):
9.70 m
Beam:
3.83 m
Draft (Max):
2.21 m
Weight & Ballast
Displacement:
7,575 kg
Ballast:
3,175 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
38.65 m²
Mainsail Area:
32.88 m²
Total Sail Area (calculated):
71.53 m²
Sail Area (reported):
71.54 m²
I (Fore Triangle Height):
15.85 m
J (Fore Triangle Base):
4.88 m
P (Mainsail Hoist):
13.92 m
E (Boom Length):
4.72 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Performance Ratios
Hull Speed:
7.56 knots
SA/Displacement (Calculated):
18.55
SA/Displacement (Reported):
18.93
Ballast/Disp Ratio:
41.92%
Displacement/Length:
231.18
Comfort Ratio:
25.95
Capsize Screening:
1.97
S-Number:
2.55
Notes

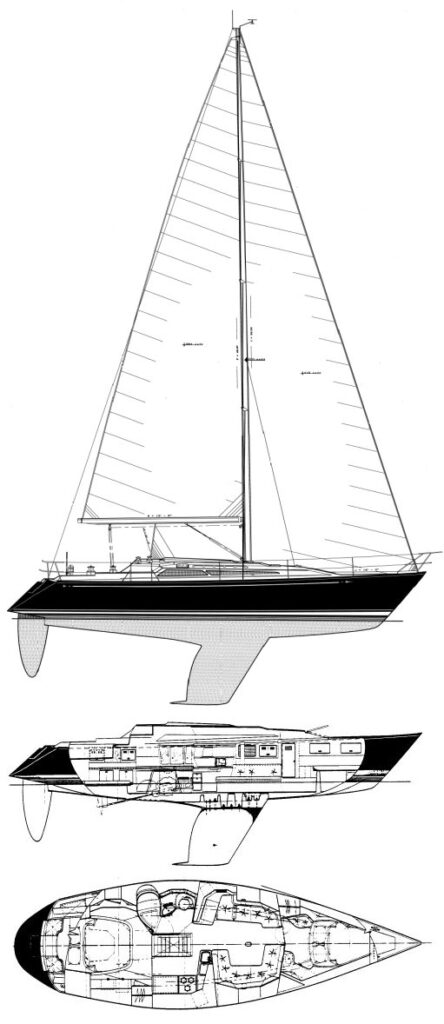

Layout of C&C 37/40+, and C&C 37/40XL are similar. (basic C&C 37/40+ layout displayed here.) Rig dimensions and displacement vary.
