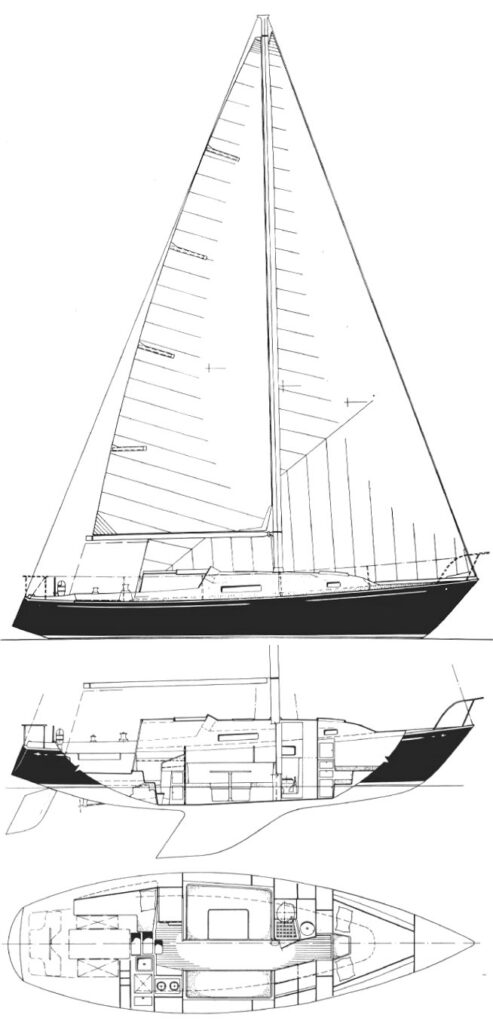

C&C 35-1(REDWING 35)
Built by Hinterhoeller Ltd. / C&C
• Designed by Cuthbertson & Cassian
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG w/balsa deck
First Built:
1969
Last Built:
1973
Dimensions
Length Overall (LOA):
10.54 m
Length Waterline (LWL):
8.38 m
Beam:
3.22 m
Draft (Max):
1.60 m
Weight & Ballast
Displacement:
4,763 kg
Ballast:
2,268 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
29.64 m²
Mainsail Area:
23.83 m²
Total Sail Area (calculated):
53.47 m²
Sail Area (reported):
53.51 m²
I (Fore Triangle Height):
13.41 m
J (Fore Triangle Base):
4.42 m
P (Mainsail Hoist):
11.58 m
E (Boom Length):
4.11 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Fuel Capacity:
76 L
Water Capacity:
98 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calculated):
18.89
SA/Displacement (Reported):
19.29
Ballast/Disp Ratio:
47.62%
Displacement/Length:
225.39
Comfort Ratio:
23.66
Capsize Screening:
1.94
S-Number:
2.65
Notes
First called the REDWING 35 and built by Hinterhoeller Ltd. a development of the INVADER 35. It was renamed the C&C 35 when Hinterhoeller was merged with C&C Yachts.
