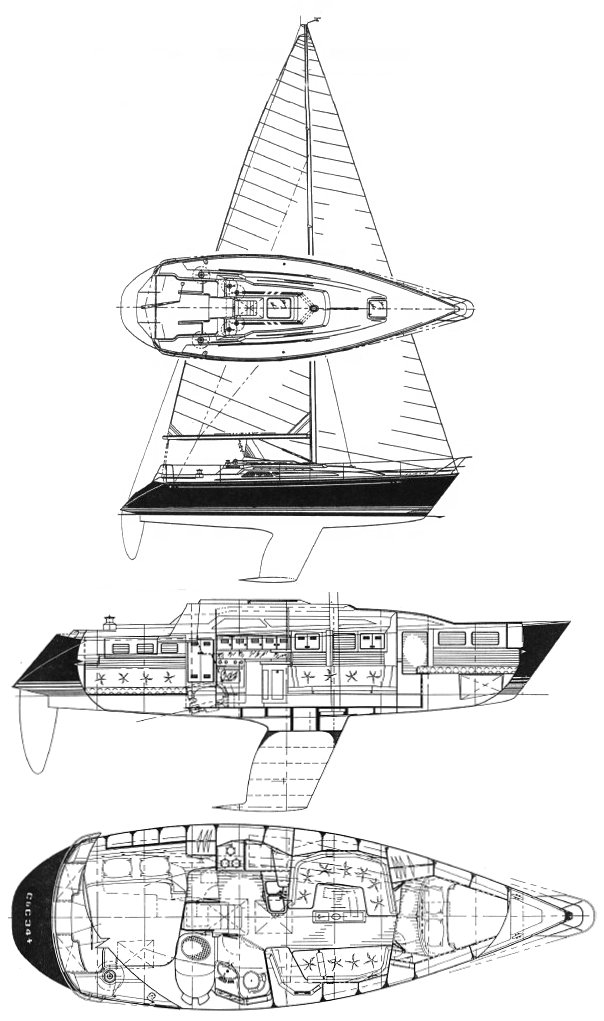

C&C 34+R
Built by C&C Yachts
• Designed by Robert Ball
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG+KEV w/balsa cored hull & deck
First Built:
1989
Dimensions
Length Overall (LOA):
10.39 m
Length Waterline (LWL):
9.32 m
Beam:
3.53 m
Draft (Max):
2.26 m
Weight & Ballast
Displacement:
5,443 kg
Ballast:
2,132 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
33.53 m²
Mainsail Area:
28.63 m²
Total Sail Area (calculated):
62.16 m²
Sail Area (reported):
62.15 m²
I (Fore Triangle Height):
14.83 m
J (Fore Triangle Base):
4.52 m
P (Mainsail Hoist):
12.95 m
E (Boom Length):
4.42 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Model:
M-25
Engine Power:
30 HP
Fuel Capacity:
151 L
Water Capacity:
227 L
Performance Ratios
Hull Speed:
7.41 knots
SA/Displacement (Calculated):
20.09
SA/Displacement (Reported):
20.49
Ballast/Disp Ratio:
39.17%
Displacement/Length:
187.34
Comfort Ratio:
22.46
Capsize Screening:
2.03
S-Number:
3.27
Notes
Rig and keel dimensions were changed a number of times during the production run of this boat.
