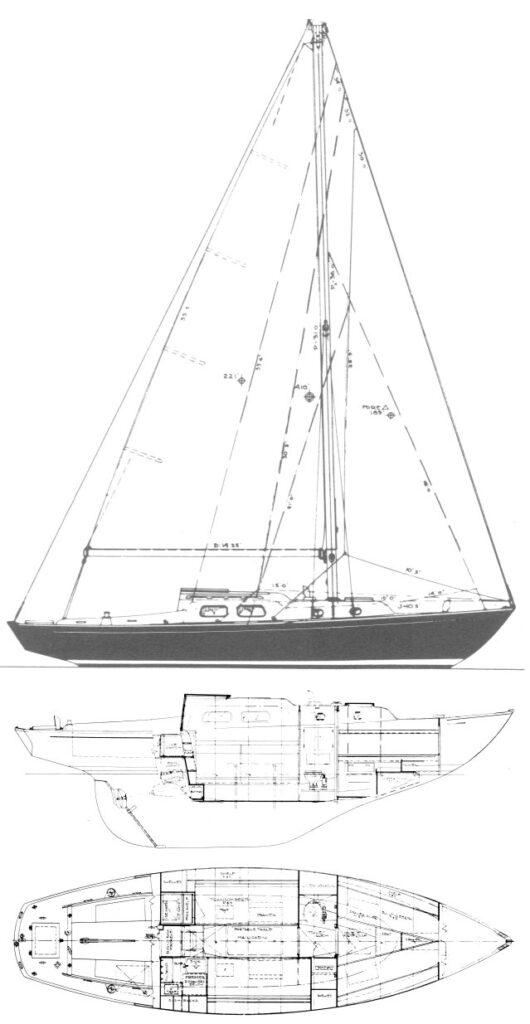

ALBERG 30
Built by Whitby Boat Works Ltd. (CAN)
• Designed by Carl Alberg
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1962
Last Built:
1987
Number Built:
700
Dimensions
Length Overall (LOA):
9.22 m
Length Waterline (LWL):
6.61 m
Beam:
2.67 m
Draft (Max):
1.30 m
Weight & Ballast
Displacement:
4,082 kg
Ballast:
1,497 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
17.56 m²
Mainsail Area:
20.52 m²
Total Sail Area (calculated):
38.08 m²
Sail Area (reported):
38.09 m²
I (Fore Triangle Height):
10.97 m
J (Fore Triangle Base):
3.20 m
P (Mainsail Hoist):
9.45 m
E (Boom Length):
4.34 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Fuel Capacity:
57 L
Water Capacity:
114 L
Performance Ratios
Hull Speed:
6.24 knots
SA/Displacement (Calculated):
14.91
SA/Displacement (Reported):
15.21
Ballast/Disp Ratio:
36.67%
Displacement/Length:
394.84
Comfort Ratio:
31.90
Capsize Screening:
1.69
S-Number:
1.06
Notes
During it's long production run, the Alberg 30 was fitted with a number of different engines for auxilary power inluding (in approximate order):
