RANGER 23
Built by Ranger Yachts (USA)
• Designed by Gary Mull
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1971
Last Built:
1978
Number Built:
740
Dimensions
Length Overall (LOA):
7.21 m
Length Waterline (LWL):
6.10 m
Beam:
2.41 m
Draft (Max):
1.14 m
Weight & Ballast
Displacement:
1,542 kg
Ballast:
680 kg

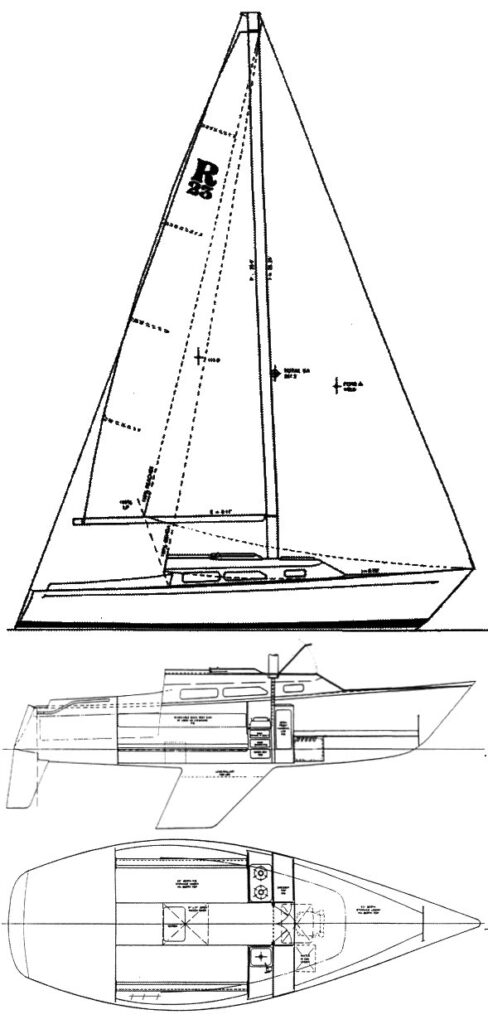

Sail Plan
Foresail Area:
12.47 m²
Mainsail Area:
10.22 m²
Sail Area:
22.70 m²
Sail Area (reported):
22.67 m²
I (Fore Triangle Height):
8.39 m
J (Fore Triangle Base):
2.97 m
P (Mainsail Hoist):
7.32 m
E (Boom Length):
2.80 m
Est. Forestay Length:
8.90 m
Engine & Systems
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calc):
17.33
SA/Displacement (Reported):
17.31
Ballast/Disp Ratio:
44.12%
Displacement/Length:
189.73
Comfort Ratio:
15.81
Capsize Screening:
2.11
S-Number:
2.87
Immersion:
101 kg/cm
Notes
Designed to rate at IOR 1/4 ton(18') level.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
