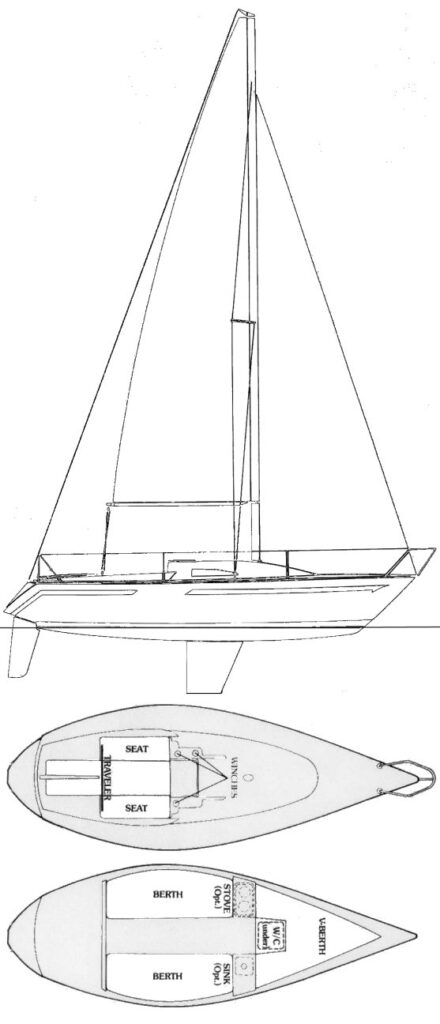

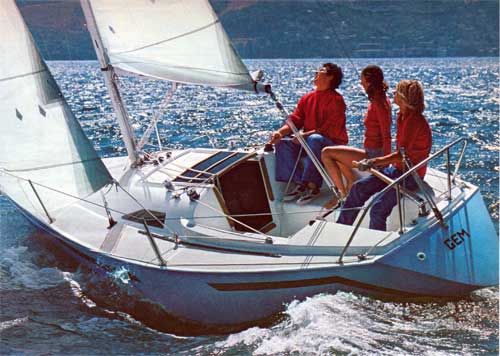

RANGER 22
Built by Jensen Marine/Ranger Yachts (USA)
• Designed by Gary Mull
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1977
Dimensions
Length Overall (LOA):
6.86 m
Length Waterline (LWL):
5.36 m
Beam:
2.39 m
Draft (Max):
1.30 m
Max Height:
10.19 m
Weight & Ballast
Displacement:
990 kg
Ballast:
408 kg
Sail Plan
Foresail Area:
10.17 m²
Mainsail Area:
8.96 m²
Sail Area:
19.13 m²
Sail Area (reported):
19.14 m²
I (Fore Triangle Height):
7.85 m
J (Fore Triangle Base):
2.59 m
P (Mainsail Hoist):
7.92 m
E (Boom Length):
2.26 m
Est. Forestay Length:
8.27 m
Engine & Systems
Performance Ratios
Hull Speed:
5.62 knots
SA/Displacement (Calc):
19.62
SA/Displacement (Reported):
19.63
Ballast/Disp Ratio:
41.23%
Displacement/Length:
179.37
Comfort Ratio:
11.41
Capsize Screening:
2.42
S-Number:
3.29
Immersion:
88 kg/cm
Notes
Originally designed as an IOR mini-ton racer.
