QUANTA 28
Built by Quanta Yachts Ltd. (CAN)
• Designed by Ray Wall
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1985
Last Built:
1988
Number Built:
12
Dimensions
Length Overall (LOA):
8.66 m
Length Waterline (LWL):
6.88 m
Beam:
2.97 m
Draft (Max):
1.68 m
Weight & Ballast
Displacement:
3,130 kg
Ballast:
1,397 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
21.29 m²
Mainsail Area:
16.85 m²
Sail Area:
38.14 m²
Sail Area (reported):
37.90 m²
I (Fore Triangle Height):
11.89 m
J (Fore Triangle Base):
3.58 m
P (Mainsail Hoist):
10.29 m
E (Boom Length):
3.28 m
Est. Forestay Length:
12.41 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
10 HP
Performance Ratios
Hull Speed:
6.37 knots
SA/Displacement (Calc):
18.18
SA/Displacement (Reported):
18.07
Ballast/Disp Ratio:
44.64%
Displacement/Length:
267.56
Comfort Ratio:
21.10
Capsize Screening:
2.05
S-Number:
2.11
Immersion:
140 kg/cm
Notes

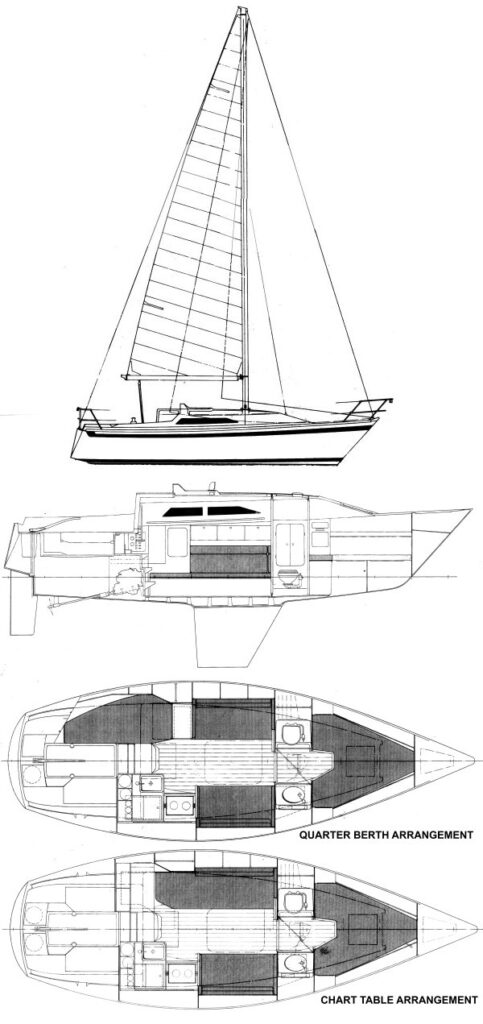

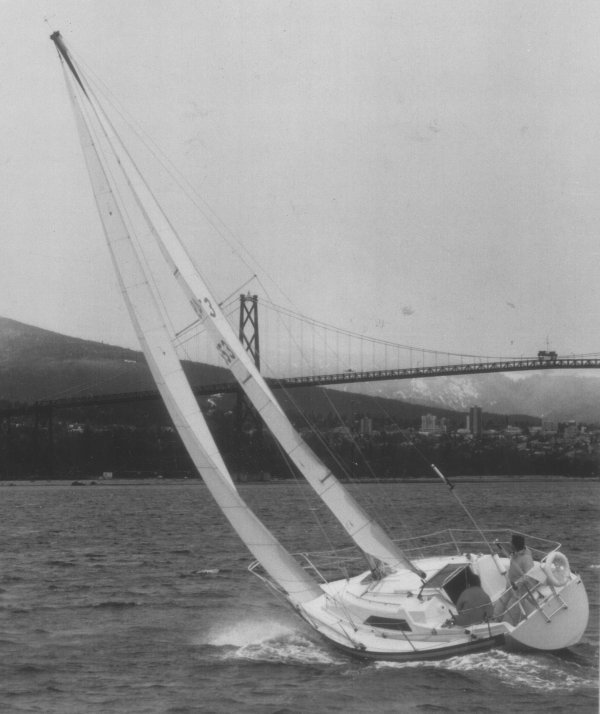

Thanks to the designer Ray Wall for providing photo, drawing and additional information.
