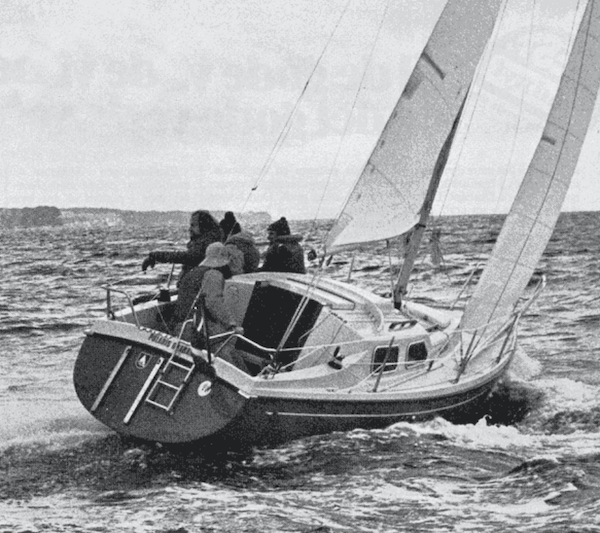

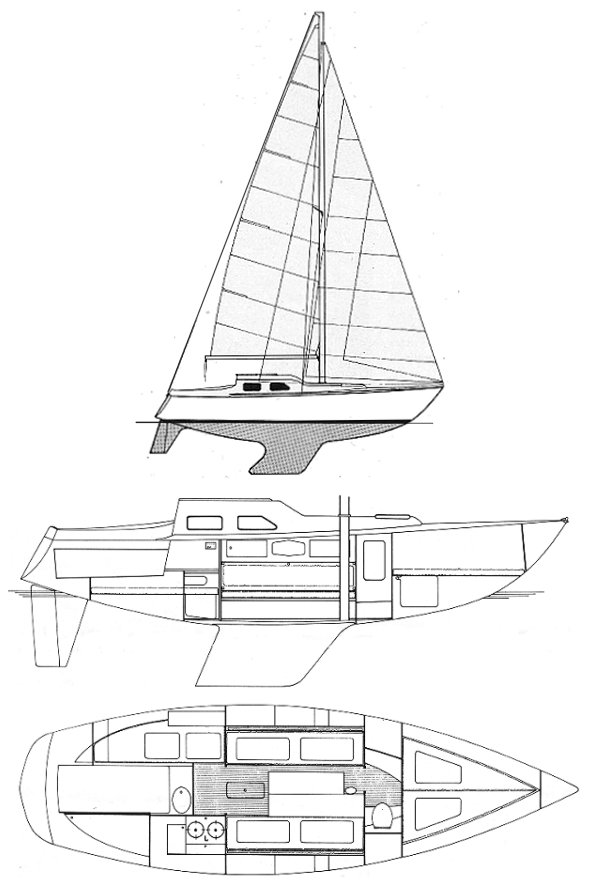

POLARIS DRABANT
Built by Nillings Bådeværft (DEN)
• Designed by Gert Gerlach
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Fractional Sloop
First Built:
1970
Last Built:
1988
Number Built:
320
Dimensions
Length Overall (LOA):
7.80 m
Length Waterline (LWL):
6.50 m
Beam:
2.40 m
Draft (Max):
1.42 m
Weight & Ballast
Displacement:
2,620 kg
Ballast:
1,350 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
9.92 m²
Mainsail Area:
12.46 m²
Sail Area:
22.39 m²
Sail Area (reported):
22.39 m²
I (Fore Triangle Height):
6.40 m
J (Fore Triangle Base):
3.10 m
P (Mainsail Hoist):
8.90 m
E (Boom Length):
2.80 m
Est. Forestay Length:
7.11 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
8 HP
Fuel Capacity:
26 L
Water Capacity:
45 L
Performance Ratios
Hull Speed:
6.19 knots
SA/Displacement (Calc):
12.01
SA/Displacement (Reported):
12.01
Ballast/Disp Ratio:
51.52%
Displacement/Length:
265.71
Comfort Ratio:
25.28
Capsize Screening:
1.76
S-Number:
1.53
Immersion:
107 kg/cm
Notes
Rudder and keel profile were altered a few times during production run. See class web site for more details.
