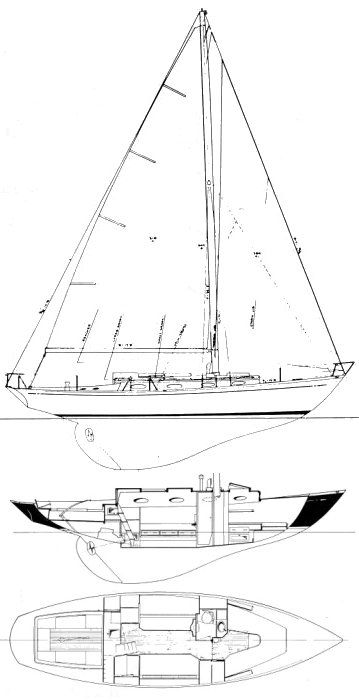

PIPEDREAM 37
Built by Kungsörs Båtvarv AB
• Designed by Sparkman & Stephens/Francis S. Kinney
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
First Built:
1961
Dimensions
Length Overall (LOA):
11.28 m
Length Waterline (LWL):
7.75 m
Beam:
3.20 m
Draft (Max):
1.73 m
Weight & Ballast
Displacement:
8,618 kg
Ballast:
2,722 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
26.28 m²
Mainsail Area:
29.50 m²
Sail Area:
55.78 m²
I (Fore Triangle Height):
13.47 m
J (Fore Triangle Base):
3.90 m
P (Mainsail Hoist):
12.25 m
E (Boom Length):
4.82 m
Est. Forestay Length:
14.03 m
Engine & Systems
Engine Type:
Diesel
Fuel Capacity:
91 L
Water Capacity:
341 L
Performance Ratios
Hull Speed:
6.76 knots
SA/Displacement (Calc):
13.54
Ballast/Disp Ratio:
31.58%
Displacement/Length:
516.39
Comfort Ratio:
44.35
Capsize Screening:
1.58
S-Number:
0.57
Immersion:
170 kg/cm
Notes
Most boats were custom built in wood from the original plans featured in “Skene’s Elements of Yacht Design”. Kungsors Yacht Yard (Sweden), built the first two in 1961. Kittery Point Boat Builders (Maine, USA), built four hulls of Fiberglass. (Francis S. Kinney was an employee of S&S at the time).
