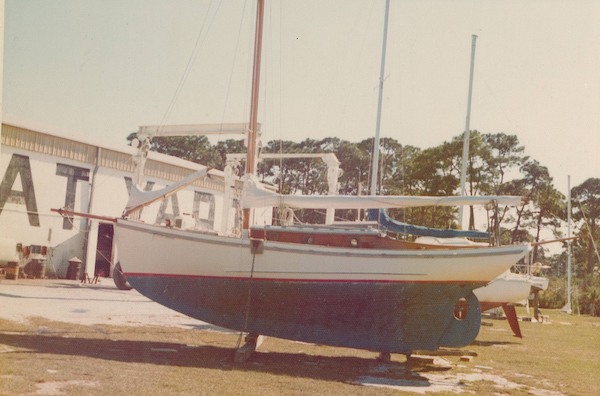

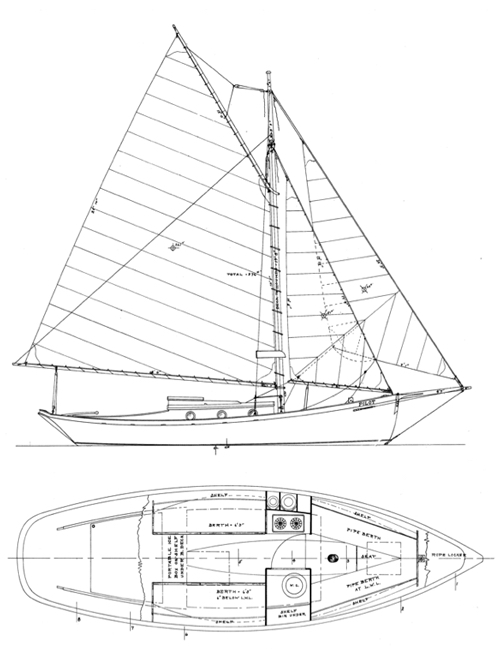

PILOT CUTTER (STADEL)
Built by Joel Johnson (Connecticut, USA)
• Designed by George Stadel Jr.
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Full Keel
Rigging Type:
Gaff Head Cutter
First Built:
1935
Number Built:
60
Dimensions
Length Overall (LOA):
7.92 m
Length Waterline (LWL):
6.76 m
Beam:
2.44 m
Draft (Max):
1.22 m
Headroom:
1.42 m
Weight & Ballast
Displacement:
3,674 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
34.93 m²
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Blue Jacket
Engine Power:
10 HP
Performance Ratios
Hull Speed:
6.31 knots
SA/Displacement (Reported):
14.96
Displacement/Length:
331.85
Comfort Ratio:
33.63
Capsize Screening:
1.60
Immersion:
113 kg/cm
Notes
It is said that the design for the Pilot Class was inspired by the New York pilot schooner "George Steers," named after its designer. Steers was the designer of "America," winner of the first America's Cup.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
