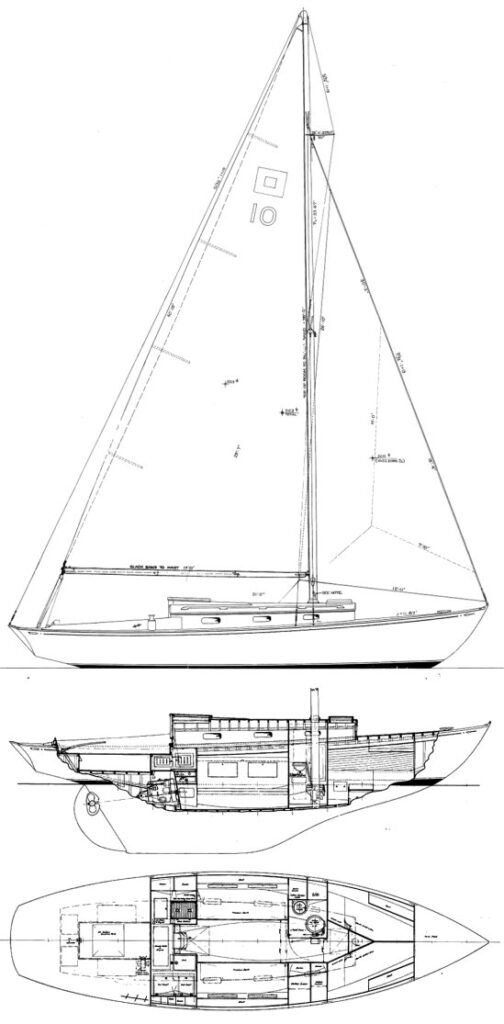

PILOT 33
Built by Fisher Boat Works/T. Knutson (USA)
• Designed by Aage Nielsen/S&S
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Long Keel
Rigging Type:
Fractional Sloop
First Built:
1945
Last Built:
1952
Dimensions
Length Overall (LOA):
10.03 m
Length Waterline (LWL):
7.32 m
Beam:
2.90 m
Draft (Max):
1.45 m
Weight & Ballast
Displacement:
5,670 kg
Ballast:
1,935 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
18.56 m²
Mainsail Area:
30.01 m²
Sail Area:
48.57 m²
Sail Area (reported):
48.59 m²
I (Fore Triangle Height):
10.26 m
J (Fore Triangle Base):
3.62 m
P (Mainsail Hoist):
11.58 m
E (Boom Length):
5.18 m
Est. Forestay Length:
10.88 m
Engine & Systems
Engine Make:
Gray Marine
Engine Type:
Gas
Engine Model:
Sea Scout 4-91
Performance Ratios
Hull Speed:
6.56 knots
SA/Displacement (Calc):
15.59
SA/Displacement (Reported):
15.59
Ballast/Disp Ratio:
34.12%
Displacement/Length:
403.67
Comfort Ratio:
36.10
Capsize Screening:
1.64
S-Number:
1.04
Immersion:
145 kg/cm
Notes
S&S design #539. (The first post war S&S design.)
