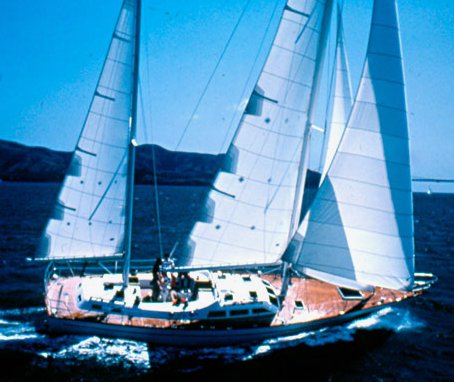

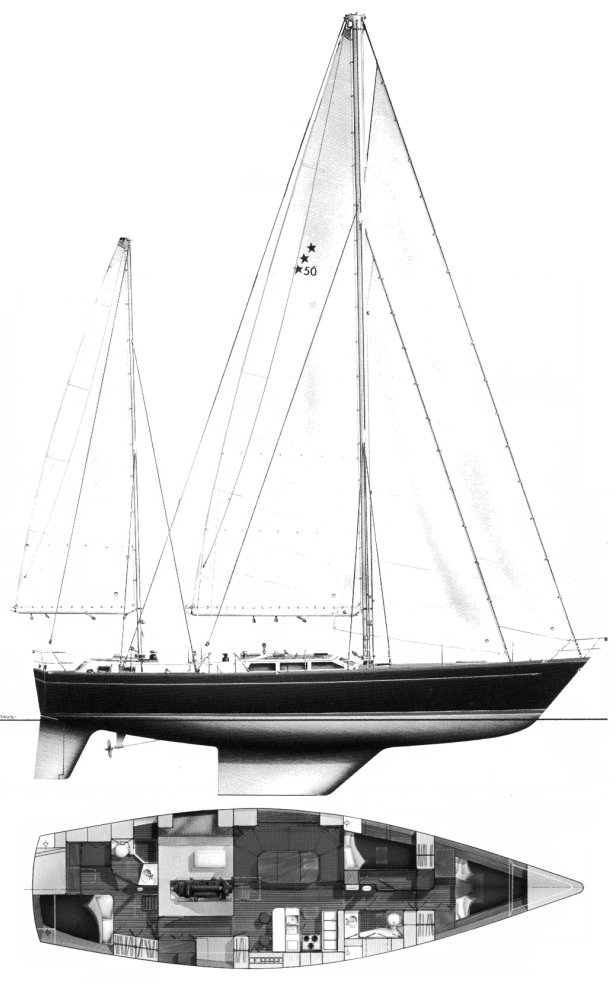

ORION 50
Built by Ta Shing Yacht Building (TAIWAN)
• Designed by Gary Mull
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Staysail Ketch
First Built:
1983
Last Built:
1987
Number Built:
7
Dimensions
Length Overall (LOA):
15.09 m
Length Waterline (LWL):
12.95 m
Beam:
4.42 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
16,601 kg
Ballast:
6,350 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
50.38 m²
Mainsail Area:
37.03 m²
Sail Area:
87.41 m²
Sail Area (reported):
103.87 m²
I (Fore Triangle Height):
17.83 m
J (Fore Triangle Base):
5.65 m
P (Mainsail Hoist):
15.85 m
E (Boom Length):
4.67 m
PY (Mizzen Hoist):
10.01 m
EY (Mizzen Boom):
3.30 m
Est. Forestay Length:
18.71 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-236
Engine Power:
85 HP
Fuel Capacity:
757 L
Water Capacity:
757 L
Performance Ratios
Hull Speed:
8.74 knots
SA/Displacement (Calc):
13.71
SA/Displacement (Reported):
16.30
Ballast/Disp Ratio:
38.25%
Displacement/Length:
212.85
Comfort Ratio:
36.03
Capsize Screening:
1.75
S-Number:
2.16
Immersion:
393 kg/cm
Notes
Thanks to ORION 50 owner Eric van Duyn for supplying media and updated information.
