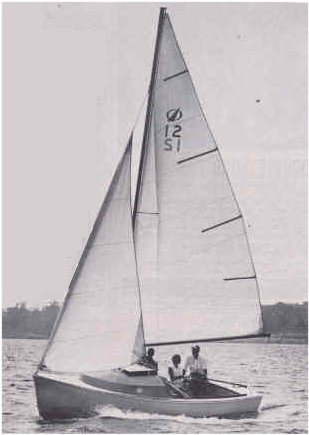

ORION 19 (SAILSTAR)
Built by Sailstar Boats (USA)
• Designed by Robert H. Baker
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Fractional Sloop
First Built:
1962
Dimensions
Length Overall (LOA):
5.79 m
Length Waterline (LWL):
5.49 m
Beam:
2.06 m
Draft (Max):
1.60 m
Draft (Min):
0.30 m
Weight & Ballast
Displacement:
340 kg

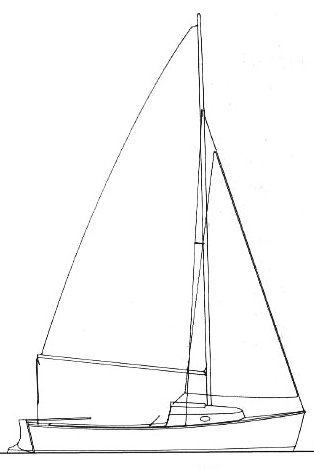

Sail Plan
Foresail Area:
5.71 m²
Mainsail Area:
10.24 m²
Sail Area:
15.95 m²
Sail Area (reported):
15.98 m²
I (Fore Triangle Height):
6.25 m
J (Fore Triangle Base):
1.83 m
P (Mainsail Hoist):
6.25 m
E (Boom Length):
3.28 m
Est. Forestay Length:
6.51 m
Engine & Systems
Performance Ratios
Hull Speed:
5.69 knots
SA/Displacement (Calc):
33.33
SA/Displacement (Reported):
33.39
Displacement/Length:
57.41
Comfort Ratio:
4.97
Capsize Screening:
2.97
S-Number:
7.96
Immersion:
78 kg/cm
Notes
2 versions were offered. The 'cruiser' with a keel-centerboard, and the 'day sailor' with a trunk centerboard.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
