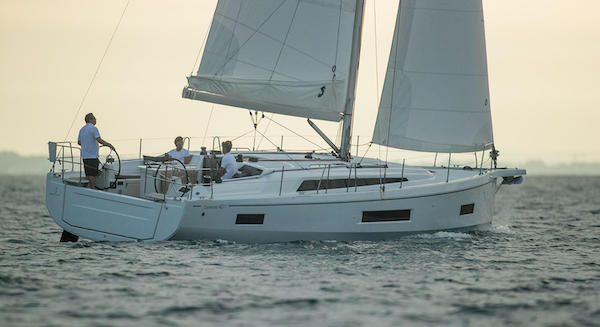

OCEANIS 40.1 (BENETEAU)
Built by Beneteau (FRA)
• Designed by Marc Lombard
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & dual rudders
Rigging Type:
Fractional Sloop
First Built:
2020
Dimensions
Length Overall (LOA):
12.87 m
Length Waterline (LWL):
11.70 m
Beam:
4.18 m
Draft (Max):
2.17 m
Max Height:
18.33 m
Weight & Ballast
Displacement:
7,985 kg
Ballast:
2,007 kg
Ballast Type:
Cast iron
Sail Plan
Foresail Area:
36.09 m²
Mainsail Area:
37.32 m²
Sail Area:
73.41 m²
Sail Area (reported):
61.60 m²
I (Fore Triangle Height):
15.13 m
J (Fore Triangle Base):
4.77 m
P (Mainsail Hoist):
14.69 m
E (Boom Length):
5.08 m
Est. Forestay Length:
15.86 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH45
Engine Power:
45 HP
Fuel Capacity:
195 L
Water Capacity:
235 L
Performance Ratios
Hull Speed:
8.30 knots
SA/Displacement (Calc):
18.75
SA/Displacement (Reported):
15.74
Ballast/Disp Ratio:
25.14%
Displacement/Length:
138.90
Comfort Ratio:
21.06
Capsize Screening:
2.11
S-Number:
3.80
Immersion:
336 kg/cm
Notes
Shallow keel: draft - 1.68m / 5.5ft; ballast - 2,237kg / 4,930lbs.
