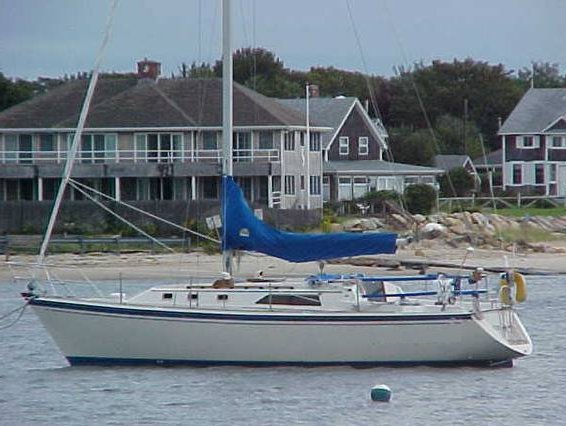

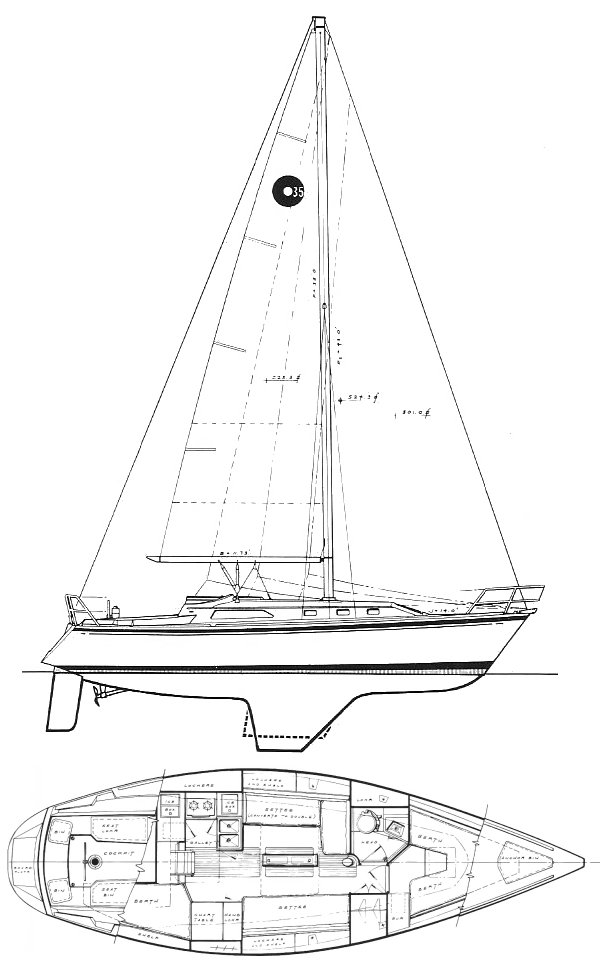

O'DAY 35
Built by O'Day Corp (USA)
• Designed by C. R. Hunt Assoc.
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1984
Last Built:
1989
Dimensions
Length Overall (LOA):
10.67 m
Length Waterline (LWL):
8.76 m
Beam:
3.43 m
Draft (Max):
1.70 m
Weight & Ballast
Displacement:
5,216 kg
Ballast:
2,087 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
27.96 m²
Mainsail Area:
20.74 m²
Sail Area:
48.70 m²
Sail Area (reported):
48.68 m²
I (Fore Triangle Height):
13.11 m
J (Fore Triangle Base):
4.27 m
P (Mainsail Hoist):
11.58 m
E (Boom Length):
3.58 m
Est. Forestay Length:
13.78 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Model:
M25
Engine Power:
21 HP
Fuel Capacity:
189 L
Water Capacity:
114 L
Performance Ratios
Hull Speed:
7.18 knots
SA/Displacement (Calc):
16.52
SA/Displacement (Reported):
16.51
Ballast/Disp Ratio:
40.00%
Displacement/Length:
216.04
Comfort Ratio:
23.10
Capsize Screening:
2.00
S-Number:
2.47
Immersion:
206 kg/cm
Notes
Similar to O'DAY 34 but with swim ladder on extended stern which accounts for extra length.
