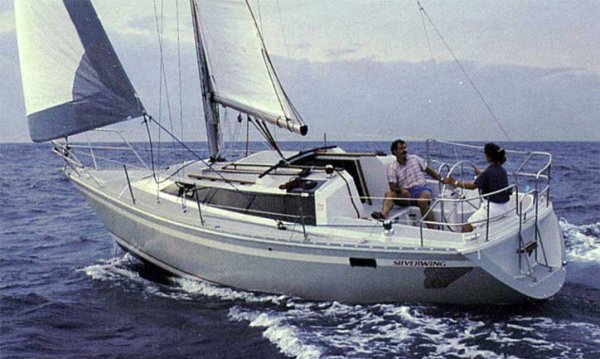

O'DAY 302
Built by O'Day Corp. (USA)
• Designed by C. Raymond Hunt and Associates
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Wing Keel
Rigging Type:
Masthead Sloop
First Built:
1988
Dimensions
Length Overall (LOA):
9.02 m
Length Waterline (LWL):
7.37 m
Beam:
3.28 m
Draft (Max):
1.19 m
Max Height:
12.60 m
Weight & Ballast
Displacement:
3,266 kg
Ballast:
1,089 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
18.81 m²
Mainsail Area:
15.94 m²
Sail Area:
34.75 m²
Sail Area (reported):
34.75 m²
I (Fore Triangle Height):
10.97 m
J (Fore Triangle Base):
3.43 m
P (Mainsail Hoist):
9.30 m
E (Boom Length):
3.43 m
Est. Forestay Length:
11.50 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
2GMF
Engine Power:
18 HP
Fuel Capacity:
91 L
Water Capacity:
114 L
Performance Ratios
Hull Speed:
6.59 knots
SA/Displacement (Calc):
16.10
SA/Displacement (Reported):
16.10
Ballast/Disp Ratio:
33.33%
Displacement/Length:
227.64
Comfort Ratio:
18.25
Capsize Screening:
2.23
S-Number:
2.30
Immersion:
166 kg/cm
Notes
One of the last O'Day's, (the parent company closed in 1989). A few more were built when the molds were purchased during short lived Cal/Pearson revival. The molds then, apparently went to Japan where another O'Day affiliate existed.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
