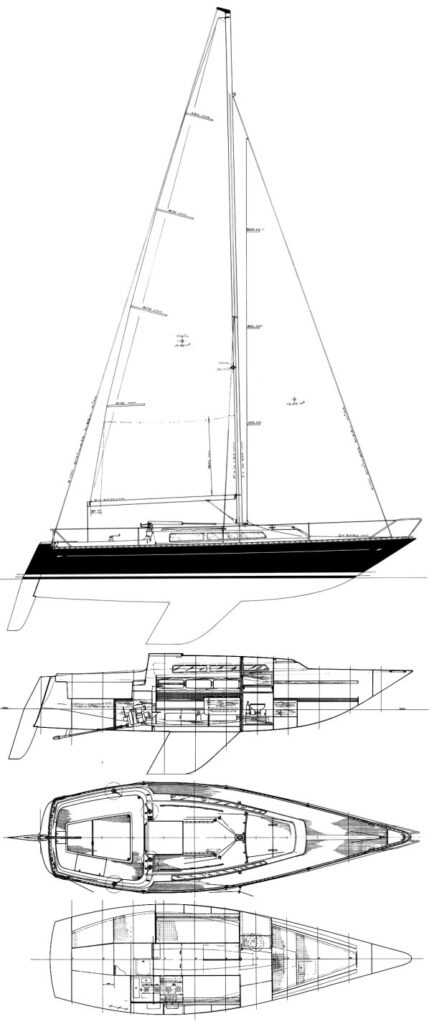

NORDIC FAMILY BOAT
Built by Kuling Marin (DEN)/Botnia Marine (FIN)
• Designed by Elvstrøm, Kjærulff, Rögeberg
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
First Built:
1974
Last Built:
1993
Number Built:
350
Dimensions
Length Overall (LOA):
8.85 m
Length Waterline (LWL):
7.25 m
Beam:
2.65 m
Draft (Max):
1.55 m
Weight & Ballast
Displacement:
2,850 kg
Ballast:
1,280 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
17.77 m²
Mainsail Area:
18.86 m²
Sail Area:
36.63 m²
Sail Area (reported):
36.60 m²
I (Fore Triangle Height):
10.30 m
J (Fore Triangle Base):
3.45 m
P (Mainsail Hoist):
11.10 m
E (Boom Length):
3.40 m
Est. Forestay Length:
10.86 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
2001/S
Fuel Capacity:
26 L
Water Capacity:
61 L
Performance Ratios
Hull Speed:
6.54 knots
SA/Displacement (Calc):
18.58
SA/Displacement (Reported):
18.57
Ballast/Disp Ratio:
44.91%
Displacement/Length:
208.32
Comfort Ratio:
21.48
Capsize Screening:
1.89
S-Number:
2.78
Immersion:
132 kg/cm
Notes
Built at a number of different yards in Denmark, Sweden, and Finland. (Birka Marine, (FIN).)
