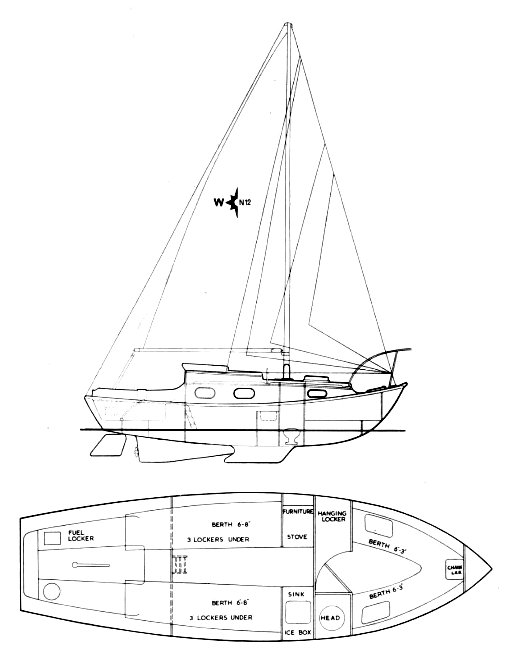

NOMAD 22 (WESTERLY)
Built by Westerly Marine Construction Ltd. (UK)
• Designed by Dennis Rayner
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Twin Keel
Rigging Type:
Masthead Sloop
First Built:
1967
Last Built:
1969
Number Built:
267
Dimensions
Length Overall (LOA):
6.78 m
Length Waterline (LWL):
5.59 m
Beam:
2.26 m
Draft (Max):
0.69 m
Weight & Ballast
Displacement:
1,429 kg
Ballast:
476 kg
Sail Plan
Foresail Area:
7.48 m²
Mainsail Area:
9.85 m²
Sail Area:
17.33 m²
Sail Area (reported):
17.37 m²
I (Fore Triangle Height):
7.01 m
J (Fore Triangle Base):
2.13 m
P (Mainsail Hoist):
6.63 m
E (Boom Length):
2.97 m
Est. Forestay Length:
7.33 m
Engine & Systems
Performance Ratios
Hull Speed:
5.74 knots
SA/Displacement (Calc):
13.92
SA/Displacement (Reported):
13.96
Ballast/Disp Ratio:
33.33%
Displacement/Length:
228.34
Comfort Ratio:
17.28
Capsize Screening:
2.03
S-Number:
2.05
Immersion:
485.97 cm/kg
Notes
The NOMAD is a reworking of the WESTERLY 22.
