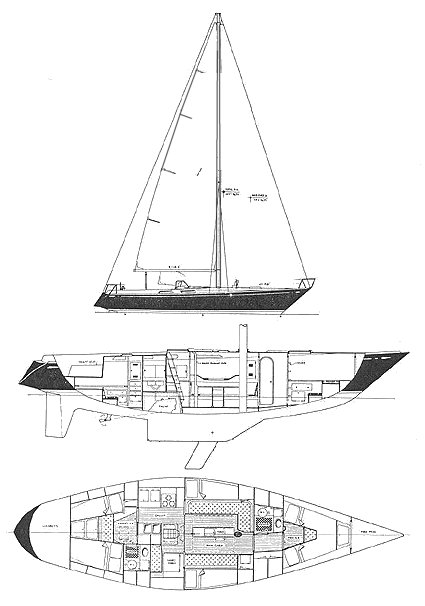

NEW YORK YACHT CLUB 48
Built by Nautor (FIN)
• Designed by Sparkman & Stephens
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1976
Last Built:
1984
Number Built:
70
Dimensions
Length Overall (LOA):
14.58 m
Length Waterline (LWL):
11.05 m
Beam:
4.19 m
Draft (Max):
1.78 m
Draft (Min):
1.78 m
Weight & Ballast
Displacement:
15,604 kg
Ballast:
7,938 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
57.02 m²
Mainsail Area:
41.40 m²
Sail Area:
98.42 m²
Sail Area (reported):
98.38 m²
I (Fore Triangle Height):
18.90 m
J (Fore Triangle Base):
6.04 m
P (Mainsail Hoist):
16.98 m
E (Boom Length):
4.88 m
Est. Forestay Length:
19.84 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD21A
Engine Power:
61 HP
Performance Ratios
Hull Speed:
8.07 knots
SA/Displacement (Calc):
16.09
SA/Displacement (Reported):
16.09
Ballast/Disp Ratio:
50.87%
Displacement/Length:
322.66
Comfort Ratio:
40.77
Capsize Screening:
1.70
S-Number:
1.52
Immersion:
318 kg/cm
Notes
The NEW YORK 48 is a variation (keel/cb) of the Swan 47 of which 60 were built. The New York 48's were hull numbers 60 +.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
