NASH 20
Built by J & J Nash Industries Ltd. (CAN)
• Designed by Hughes/Nash
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
First Built:
1972
Dimensions
Length Overall (LOA):
6.10 m
Length Waterline (LWL):
5.66 m
Beam:
2.29 m
Draft (Max):
1.83 m
Draft (Min):
0.51 m
Max Height:
8.38 m
Weight & Ballast
Displacement:
862 kg
Ballast:
249 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
8.88 m²
Mainsail Area:
8.78 m²
Sail Area:
17.66 m²
Sail Area (reported):
17.65 m²
I (Fore Triangle Height):
7.77 m
J (Fore Triangle Base):
2.29 m
P (Mainsail Hoist):
6.40 m
E (Boom Length):
2.74 m
Est. Forestay Length:
8.10 m
Engine & Systems
Performance Ratios
Hull Speed:
5.78 knots
SA/Displacement (Calc):
19.88
SA/Displacement (Reported):
19.86
Ballast/Disp Ratio:
28.95%
Displacement/Length:
132.24
Comfort Ratio:
10.55
Capsize Screening:
2.42
S-Number:
4.08
Immersion:
89 kg/cm
Notes

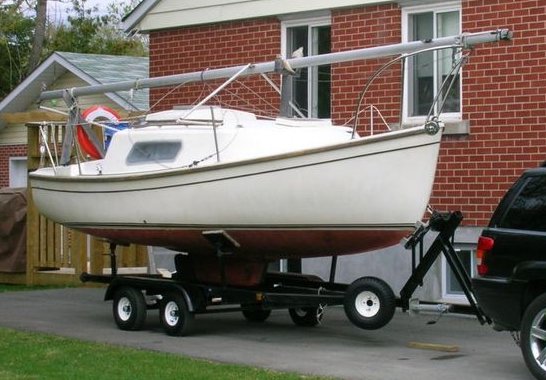

Thanks to NASH 20 owner Brian H. for providing photo (the only one we've seen of this model).
