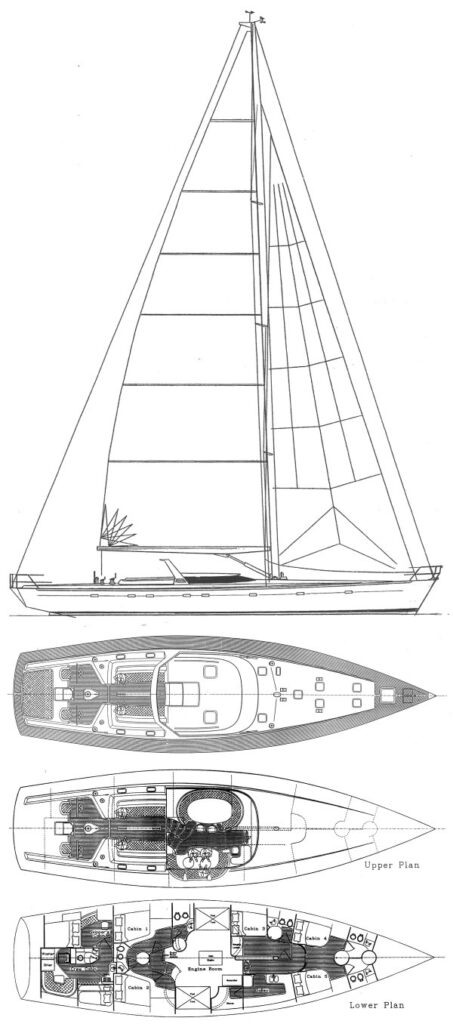

MYSTIC 76
Built by Mystic Yachts
• Designed by Julian Everitt
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/CB w/dual rudders
Rigging Type:
Fractional Sloop
First Built:
1996
Last Built:
2016
Number Built:
4
Dimensions
Length Overall (LOA):
23.16 m
Length Waterline (LWL):
18.81 m
Beam:
6.37 m
Draft (Max):
3.55 m
Draft (Min):
1.82 m
Weight & Ballast
Displacement:
47,717 kg
Ballast:
17,617 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
98.39 m²
Mainsail Area:
126.51 m²
Sail Area:
224.91 m²
Sail Area (reported):
224.92 m²
I (Fore Triangle Height):
25.96 m
J (Fore Triangle Base):
7.58 m
P (Mainsail Hoist):
27.80 m
E (Boom Length):
9.10 m
Est. Forestay Length:
27.04 m
Engine & Systems
Performance Ratios
Hull Speed:
10.53 knots
SA/Displacement (Calc):
17.47
SA/Displacement (Reported):
17.47
Ballast/Disp Ratio:
36.92%
Displacement/Length:
199.84
Comfort Ratio:
43.03
Capsize Screening:
1.78
S-Number:
2.76
Immersion:
823 kg/cm
Notes
First three built in aluminium with the charter interior as shown. Boat no 4 built in composites with two stateroom interior. Boat number 5 built in China. All boats feature lift keels and skipper/crew accommodation aft.
