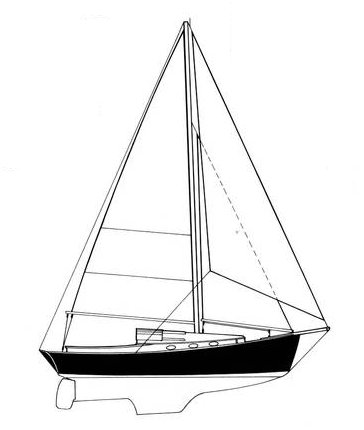

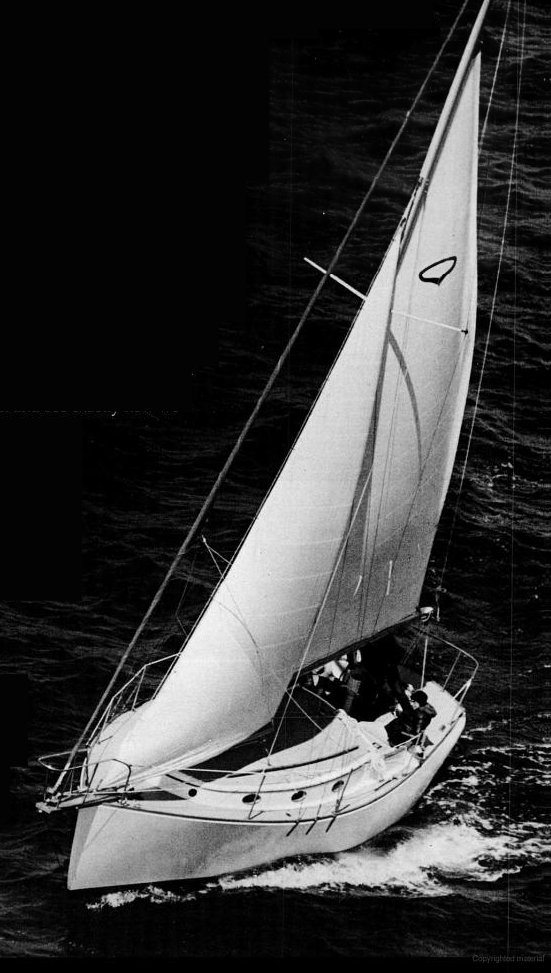

MYSTIC 30
Built by Legnos Boatbuilding Co. (USA)
• Designed by Peter Legnos
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
First Built:
1978
Last Built:
1982
Number Built:
24
Dimensions
Length Overall (LOA):
10.26 m
Length Waterline (LWL):
7.72 m
Beam:
3.12 m
Draft (Max):
1.32 m
Weight & Ballast
Displacement:
4,309 kg
Ballast:
1,361 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.57 m²
Mainsail Area:
20.28 m²
Sail Area:
45.85 m²
Sail Area (reported):
48.87 m²
I (Fore Triangle Height):
11.19 m
J (Fore Triangle Base):
4.57 m
P (Mainsail Hoist):
9.68 m
E (Boom Length):
4.19 m
Est. Forestay Length:
12.09 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD7A
Engine Power:
12 HP
Fuel Capacity:
83 L
Water Capacity:
140 L
Performance Ratios
Hull Speed:
6.74 knots
SA/Displacement (Calc):
17.66
SA/Displacement (Reported):
18.83
Ballast/Disp Ratio:
31.58%
Displacement/Length:
260.96
Comfort Ratio:
23.77
Capsize Screening:
1.94
S-Number:
2.13
Immersion:
166 kg/cm
Notes
LOD: 30 ft/ 9.13m
