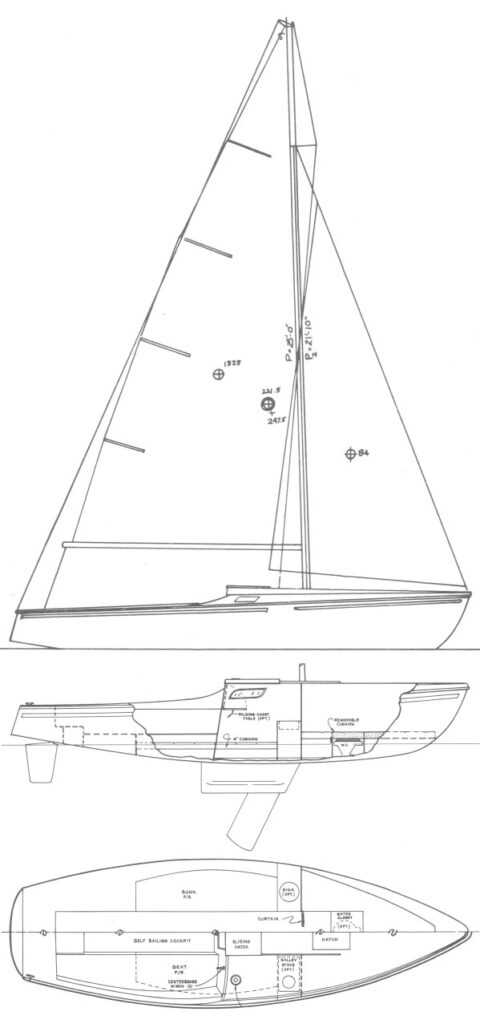

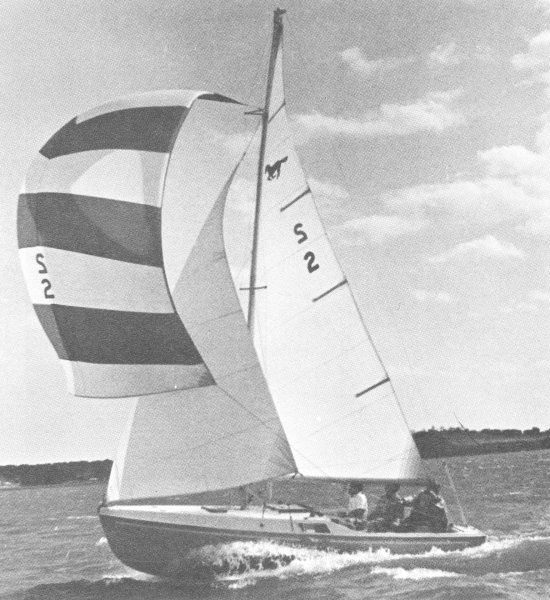

MUSTANG 22
Built by PlasTrend (USA)
• Designed by Martin Bludworth
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Keel/CB & spade rudder
Rigging Type:
Fractional Sloop
First Built:
1969
Dimensions
Length Overall (LOA):
6.71 m
Length Waterline (LWL):
5.18 m
Beam:
2.13 m
Draft (Max):
1.60 m
Draft (Min):
0.71 m
Weight & Ballast
Displacement:
885 kg
Ballast:
340 kg
Sail Plan
Foresail Area:
7.78 m²
Mainsail Area:
12.19 m²
Sail Area:
19.97 m²
Sail Area (reported):
19.97 m²
I (Fore Triangle Height):
6.65 m
J (Fore Triangle Base):
2.34 m
P (Mainsail Hoist):
7.62 m
E (Boom Length):
3.20 m
Est. Forestay Length:
7.05 m
Engine & Systems
Performance Ratios
Hull Speed:
5.52 knots
SA/Displacement (Calc):
22.09
SA/Displacement (Reported):
22.09
Ballast/Disp Ratio:
38.46%
Displacement/Length:
177.19
Comfort Ratio:
12.19
Capsize Screening:
2.24
S-Number:
3.60
Immersion:
76 kg/cm
Notes
Similar to the PT-22 (1/4 TON).
