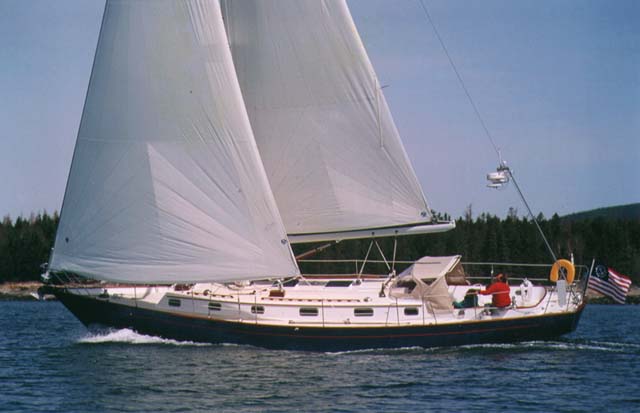

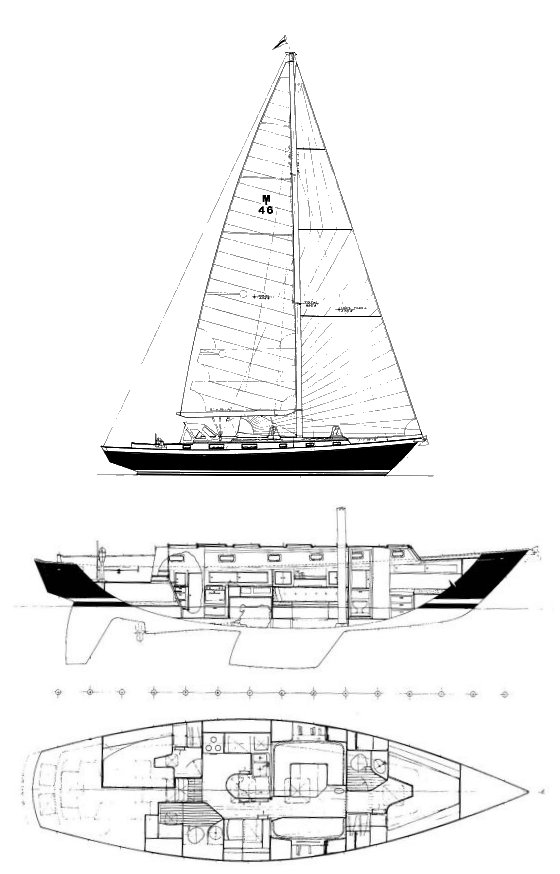

MORRIS 46
Built by Morris Yachts
• Designed by Chuck Paine & Associates
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
First Built:
1994
Last Built:
2007
Number Built:
14
Dimensions
Length Overall (LOA):
14.00 m
Length Waterline (LWL):
10.52 m
Beam:
3.96 m
Draft (Max):
1.68 m
Weight & Ballast
Displacement:
10,659 kg
Ballast:
3,915 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
46.46 m²
Mainsail Area:
39.87 m²
Sail Area:
86.33 m²
Sail Area (reported):
81.66 m²
I (Fore Triangle Height):
17.75 m
J (Fore Triangle Base):
5.23 m
P (Mainsail Hoist):
15.54 m
E (Boom Length):
5.13 m
Est. Forestay Length:
18.51 m
Engine & Systems
Fuel Capacity:
284 L
Water Capacity:
568 L
Performance Ratios
Hull Speed:
7.87 knots
SA/Displacement (Calc):
18.19
SA/Displacement (Reported):
17.21
Ballast/Disp Ratio:
36.72%
Displacement/Length:
255.48
Comfort Ratio:
31.45
Capsize Screening:
1.82
S-Number:
2.23
Immersion:
286 kg/cm
Notes
Later documents indicate a ballast of 8,280 lbs.
